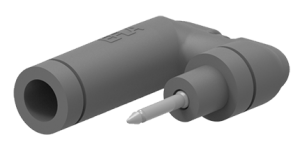

U-29 PRIMARY CONNECTOR ADAPTER



Solves the problem of making simple primary installation in limited space by allowing the male and female connector to be assembled in a 180° angle. The unit complies with FAA-L-823 styles 2 and 9. Wiring 6 mm², 19 strands, 5 kV.



EFLA's U-29 primary connector adapter

KDCA.U-29



Main benefits

  • Easy and fast installation
  • Strong encapsulation materials fit to all operational environments
  • Adapter for connecting primary female and male in a 180° angle



Check out our installation instruction for the U-29 Primary Connector Adapter


SECONDARY CIRCUIT Y -CONNECTORS



Offers quick solution to handle more complex secondary circuit application requirements in terms of parallel transformer setting, double loading on secondary and short impedance on secondry side.



Main benefits

  • Special solution for special secondary requirement
  • Easy and fast installation

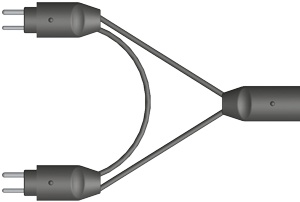

KDCA.2PR

KDCA.2PR



If the load supplied by standard AGL series transformers is insufficient, it is possible to use two AGL series transformers connected through KDCA.2PR.



Note: When the secondary circuit is earthed, only one of the transformers can have the earthing option. Otherwise, the secondary circuit will short circuit. Distance between connectors is approx. 20 cm

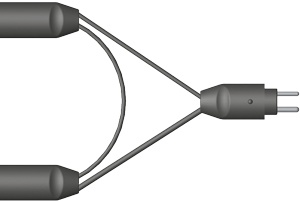

KDCA.P2R

KDCA.P2R



In some cases, it is possible to use two loads after one AGL series transformer, the KDCA.P2R being designed for this purpose. Distance between connectors is approx. 20 cm.



Materials: Both of the above mentioned products are made by assembling prefabricated products in combination. Please see page 16 for material information.



Check out our installation instruction for the Y-Connectors in the Secondary of AGL Series Transformers






SECONDARY SHORT CIRCUITING CONNECTOR

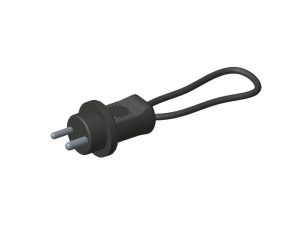

KDC506.SHORT

KDC506.SHORT



This connector is designed for the short circuited secondary side of an unused AGLST, almost eliminating the impedance of the secondary side. The connector also operates as a watertight cap. Current rating: 20A, Voltage rating: 600V
