Primary Connectors

FAA L-823, Styles 3 and 10, Class B

Primary circuit is the foundation of an Aeronautical Ground Lighting (AGL) system. Connectors are often the most sensitive parts of the primary circuit. Therefore, the easiest way to increase reliability of airfield light network is to favor high quality connectors.



Efla offers a broad range of high quality primary connectors. All Elfa primary connector product families (KDL, KD and KDR) are available for screened (shielded) and unscreened (unshielded) cable.  All of our primary connectors comply with the appropriate FAA 150/5345-26 requirements for plugs and receptacles (cable connectors). Efla’s primary connectors are packed and delivered in kits including all the necessary parts for making the assembly on primary cables. Each primary connector kit contains parts for a pair (a plug and a receptacle), resulting in a watertight post-installation connection. Nominal rating: 25 A and 5 000V.



REQUEST A QUOTE
  • This field is for validation purposes and should be left unchanged.




Three types of  primary connectors:



KDL-SERIES



KDL1 Thumbnail

Mechanically secured, silicone filled primary connectors that are fast to install, reliable and have low life-time costs.



KD-SERIES



FAA-certified and silicone filled primary connectors that are fast to install, lower in purchasing price and have a proven record of over 30 years.



KDR-SERIES



Resin filled primary connectors for challenging conditions. Reliable connectors with an option for tropical resin.








KDL-SERIES:

KDL connectors have many unique features that make them the most reliable AGL primary network connectors. Main features of the installer friendly KDL connectors are water tightness and durability. The innovative design reduces installation time and errors.



KDL1 for screened / shieled cables and KDL10 for unscreened/ unshieled cables







Introducing the new KDL

  1. Cable gland gives excellent protection against bending and enables using any size primary cables.
  2. Connector forms screen continuity without crimping. Therefore, installation time and errors are reduced.
  3. Screen continuity without piercing the housing eliminates the risk of leakage. Universal connection point.
  4. In-build pressure equalizer makes closing the airtight connectors easy.
  5. Two-component structure on receptacle housing makes connection exceptionally reliable and long lasting.
  6. Re-usable EFLA Lock secures the connection from pulling force up to 25 kg/55 lbs.
  7. Connector water tightness is secured with Efla’s special silicon and three internal water barriers.
  8. Cable gland has rubber seal which is the primary watertight barrier between a connector and a cable.



Dimensional Data

EFLA Type  Conductor Size (mm²) AWG Cable Diameter (mm/inch)  Diameter at Wire Insulation (mm/inch) Diameter & Length of Assembly (mm/inch)
KDL1 6 8 9.0 – 17.0 mm
0.354 – 0.669”
7.5 – 13.0 mm
0.295 – 0.512”
D: 42 mm, L: 276 mm
D: 1.654”, L:10.886”
KDL1.6 10 6 9.0 – 17.0 mm
0.354 – 0.669”
7.5 – 13.0 mm
0.295 – 0.512”
D: 42 mm, L: 276 mm
D: 1.654”, L:10.886”
KDL10 6 8 9.0 – 17.0 mm
0.354 – 0.669”

7.0 – 17.0 mm

0.276 – 0.669″

D: 34 mm, L: 268 mm
D: 1.339”, L: 10.551”
KDL10.6 10 6 9.0 – 17.0 mm
0.354 – 0.669”
7.0 – 17.0 mm

0.276 – 0.669″

D: 34 mm, L: 268 mm
D: 1.339”, L: 10.551”



Check out our installation instructions for the screened KDL1 Primary Connector



Check out our installationi instructions for the unscreened KDL10 Primary Connector





Three elements of reliable primary connection – one solution: KDL

Reliable primary connection requires three elements. Firstly, only flawless high quality connectors should be used. Secondly, connectors need to be installed according to the instructions. Thirdly, connectors should be used correctly during system maintenance and inspections. Ignoring any of these three elements is likely to cause problems with in the primary network.



KDL is a new kind of connector that helps to secure all three elements influencing the reliability of primary connection. KDL is technically very reliable and long lasting connector. Innovative design makes KDL connector easy, fast and logical to install. Therefore, KDL reduces installation mistakes. KDL tolerates well bending, twisting and pulling. It withstands rough treatment in challenging conditions at the airfield. KDL allows airport maintenance personnel to focus on actual work instead of worrying about connectors at the field.



High Quality Connector

  • 30 years of experience and certified manufacturing and testing methods
  • Innovative details for long-lasting performance
  • Highest quality in materials and latest production methods



Flawless Installation

  • One connector fits all common AGL-cables
  • Installer friendly design minimizes mistakes during installation
  • Connector features reduce installation time



Correct Use

  • Strengthened connector structure tolerates bending well
  • Resistant to pulling, with EFLA Lock up to 25 kg
  • Optimal connector when installation space is limited








KD-SERIES:

Quick installation with conductive part, with or without screen continuity and insulation parts filled with silicon grease. KD500 for screened cables, and 510 for unscreened cables.



KD500

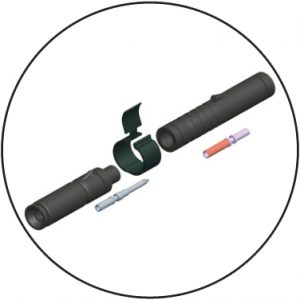

KD510

Standard

Yellow-Green

Black





Screen continuity

The standard screen continuity is a 2.5 mm² tinned copper wire, 300 mm long. Upon request, KD500 may be supplied with insulated screen continuity in yellow-green (e.g. KD500/YG) or black (e.g. KD500/B). 6 mm² is also available.



Dimensional data

EFLA Type Conductor size (mm²) AWG Cable Diameter (mm/inch) Diameter at Wire Insulation (mm/inch) Diameter & Lenght of Assembly (mm/inch)
KD500 6 8 10.0 – 14.5 mm
0.393 – 0.570”
7.0 – 10.5 mm
0.275 – 0.413”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD500.1 6 8 14.0 – 18.5 mm
0.551 – 0.570”
10 – 13.5 mm
0.393 – 0.531”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD500.3 6 8 18.0 – 22.0 mm
0.708 – 0.866”
12.5 – 16.0 mm
0.492 – 0.629”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD500.6 6 8 8.5 – 11.5 mm
0.334 – 0.452”
5.0 – 7.5 mm
0.196 – 0.295”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD500.2 10 6 14.0 – 18.5 mm
0.551 – 0.570”
10 – 13.5 mm
0.393 – 0.531”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD500.4 10 6 18.0 – 22.0 mm
0.708 – 0.866”
12.5 – 16.0 mm
0.492 – 0.629”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD500.5 6 8 10.0 – 14.5 mm
0.393 – 0.570”
7.0 – 10.5 mm
0.275 – 0.413”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD510 6 8 10.0 – 14.5 mm
0.393 – 0.570”
7.0 – 10.5 mm
0.275 – 0.413”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD510.1 6 8 14.0 – 18.5 mm
0.551 – 0.570”
10 – 13.5 mm
0.393 – 0.531”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD510.3 6 8 18.0 – 22.0 mm
0.708 – 0.866”
12.5 – 16.0 mm
0.492 – 0.629”
D: 23.5 mm, L: 215 mm
D: 0.925”, L: 8.46”
KD510.6 6 8 8.5 – 11.5 mm
0.334 – 0.452”
5.0 – 7.5 mm
0.196 – 0.295”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD510.2 10 6 14.0 – 18.5 mm
0.551 – 0.570”
10 – 13.5 mm
0.393 – 0.531”
D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”
KD510.4 10 6 18.0 – 22.0 mm
0.708 – 0.866”
12.5 – 16.0 mm
0.492 – 0.629”
D: 23.5 mm, L: 215 mm
D: 0.925”, L: 8.46”
KD510.5 6 8 10.0 – 14.5 mm
0.393 – 0.570”
7.0 – 10.5 mm
0.275 – 0.413”

D: 23.5 mm, L: 222 mm
D: 0.925”, L: 8.74”



Check out our installation instructions for the screened KD500 Primary Connector



Check out our installation instructions for the unscreened KD510 Primary Connector






KDR-SERIES:

Resin-type primary connector for heavy-duty use. Efla’s resin type connector is supplied with a high performance PU resin to be poured inside the insulation body around the connective parts and screen continuity. KDR600 for screened cables, and KDR610 for unscreened cables.



KDR600

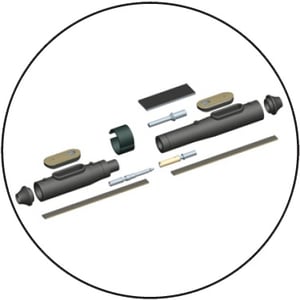

KDR610

Standard





Screen continuity

The standard screen continuity is a 2.5 mm² yellow-green copper wire, 300 mm long. Upon request, 6 mm² is also available.



Dimensional data

EFLA Type Conductor Size (mm²) AWG Cable Diameter (mm/inch) Diameter at Wire Insulation (mm/inch) Diameter & Lenght of Assembly (mm/inch)
KDR600 6 8 9.0 – 19.0mm
0.354 – 0.748”
7.0 – 10.5 mm
0.275 – 0.413”
D: 31.0 mm, L: 270 mm
D: 1.22”, L: 10.62”
KDR600.2 10 6 9.0 – 19.0mm
0.354 – 0.748”
5.0 – 7.5 mm
0.196 – 0.295”
D: 31.0 mm, L: 270 mm
D: 1.22”, L: 10.62”
KDR610 6 8 9.0 – 19.0mm
0.354 – 0.748”
7.0 – 10.5 mm
0.275 – 0.413”
D: 31.0 mm, L: 270 mm
D: 1.22”, L: 10.62”
KDR610.2 10 6 9.0 – 19.0mm
0.354 – 0.748”
5.0 – 7.5 mm
0.196 – 0.295”
D: 31.0 mm, L: 270 mm
D: 1.22”, L: 10.62”



Check out our installation instructions for the screened KDR600 Primary Connector



Check out our installation instructions for the unscreened KDR600 Primary Connector
