Weights, packing and crimping tools

PRIMARY CONNECTOR KITS



Efla Type Weight / 1pc Standard packing Weight Cbm
KD500 -series 130 g 60 pcs 8 kg 0.03 cbm
KD510 -series 110 g 60 pcs 6,9 kg 0.03 cbm
KDR600-610 series 320 g 20 pcs 6 kg 0.03 cbm



SECONDARY CONNECTOR KITS



Efla Type Weight/1pc Standard packing Weight Cbm
KD501-503 series 50 g 100 pcs 5.5 kg 0.03 cbm
KD3P & KD 3R 50 g 100 pcs 5.5 kg 0.03 cbm








CRIMPING TOOLS FOR CONNECTORS




Primary Connectors: for instance Elpress GWB 4099C (conductor size 4-10mm²)
Secondary Connectors: for instance Elpress DKB 0760 (conductor size 0,7- 6mm²)
    Elpress GWB 4099C   (conductor size 4-10mm²)








Contents of Connector Kits



Contents of Connector Kits
  KD500 KD510 KDR600 KDR610 KD501 KD502 KD503 KD3_
Crimp type connecting parts 2 2 2 2 1 1 1 1
Plug and receptacle housings 2 2 2 2 1 1 1 1
Locking device (polypropylene) 1 1 1 1
Silicone grease (inside the housing) X X X X X X X X
Guiding pin for receptacle (PA or PP) X X X X .
Resin bag and hardener   X
Gloves and sandpaper X X
Cleaning cloth X X X X X X X X
Installation instructions X X X X X X X X
2 screen continuity connectors (tinplated brass) with 350 mm long 2.5 mm Cu-wires X X
1 terminal block with 2 screws (nickelplated brass); connector housing made of PA 6.6 X X





TRANSFORMERS



Efla Type Efla Type D mm L mm H mm (weight)
kg
Standard
packing **
pcs
gross
weight
kg
cbm
KR621 KR621.1 89 115 45 1,03 220 250 0,64
KR625 KR625.1 89 115 45 1,03 220 250 0,64
KR631 KR631.1 100 125 55 1,6 208 358 0,64
KR636 KR636.1 126 168 54 1,9 180 375 0,64
KR641 KR641.1 147 193 54 3 144 457 0,64
KR646 KR646.1 147 193 60 3,12 144 475 0,64
KR651 KR651.1 147 193 64 3,37 126 450 0,64
KR661 KR661.1 147 193 73 4,17 108 476 0,64
KR681 KR681.1 147 193 95 5,33 90 505 0,64
KRV530 KRVS530 100 125 55 1,4 208 310 0,64
KRV536 KRVS536 126 168 56 1,5 160 260 0,64
KRV540 KRVS540 147 193 60 2,3 144 350 0,64
KRV546 KRVS546 147 193 60 2,4 144 370 0,64
KRV550 KRVS550 147 193 64 3,3 126 440 0,64



20130130_secondary_circuit_y_connectors_5

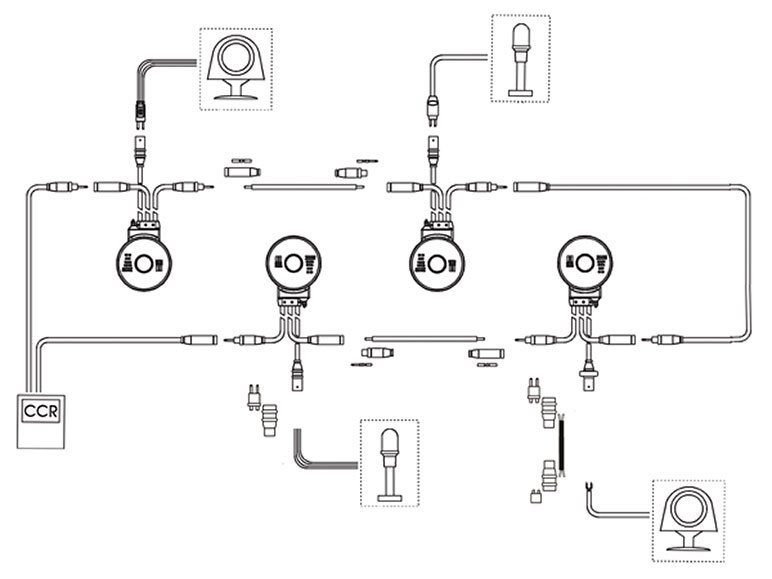

Constant Current Series Circuit
