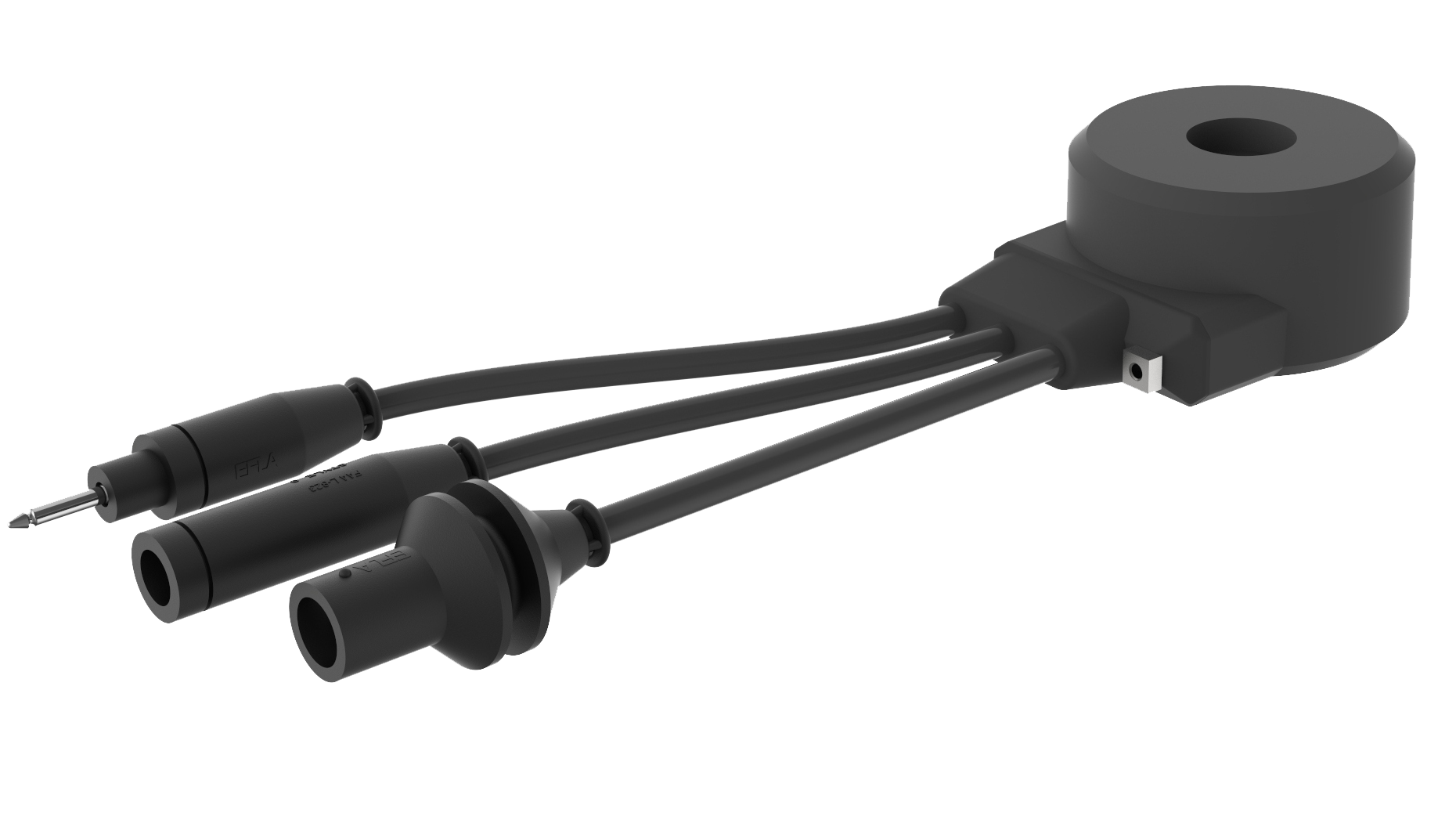

KR600 transformer to series circuit

Low leakage inductance for improved powerline communication

KR600 series design provides very low leakage inductance. It supports single lamp control and other advanced control and monitoring equipments. KR600 is the most energy efficient transformer in the market due to 360-degree wound toroidal core design. Transformers are certified by FAA and approved by IEC. They also comply with ICAO Annex 14 and several other national standards (MAK, CAAC).

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Optimal physical size and electrical performance of toroidal structure
    • Rated power 10 - 500 W
    • Rated current 6.6 A/6.6 A , other currents upon request
    • Power factor > 0,97
    • L (leak) 20µH - 130 µH
    • L (magn) 13.0mH - 64 mH
