Secondary connectors

First time right - to all demanding environments

AGL Secondary Connectors

FAA AC 5345-26, L-823, CLASS B, ICAO: Aerodrome design manual Part 5, Electrical Systems, Aerodrome design manual, Part 6, Frangibility

The secondary circuit supplies power to light fixture and delivers control and monitoring data. High quality secondary connectors ensure water tight connection along with seamless power and communication.

EFLA connectors provide watertight and durable installation to any environments. Nominal rating is 20A and 600V.  Secondary connectors are available in standard 2-pin versions, and in breakaway option to frangible approach mast installations. Fast and simple installation is guided with attached manuals.

EFLA’s secondary connectors are packed and delivered in kits including all the necessary parts for making the assembly on secondary cables. Each secondary connector kit contains components for a plug or a receptacle.



Get our product catalogue

Enter your email to download our product catalogue and discover the full range of our products.

Secondary connectors

KD501, Secondary Connector

KD501/502 for two core cable >

KD 501/502 have been the industry requirement for over 30 years. This waterproof silicon filled connector is used with double insulated two core cables, 3-pin also available. Connector is fast to install, approx. 1min. KD 501/502 connectors are FAA certified.

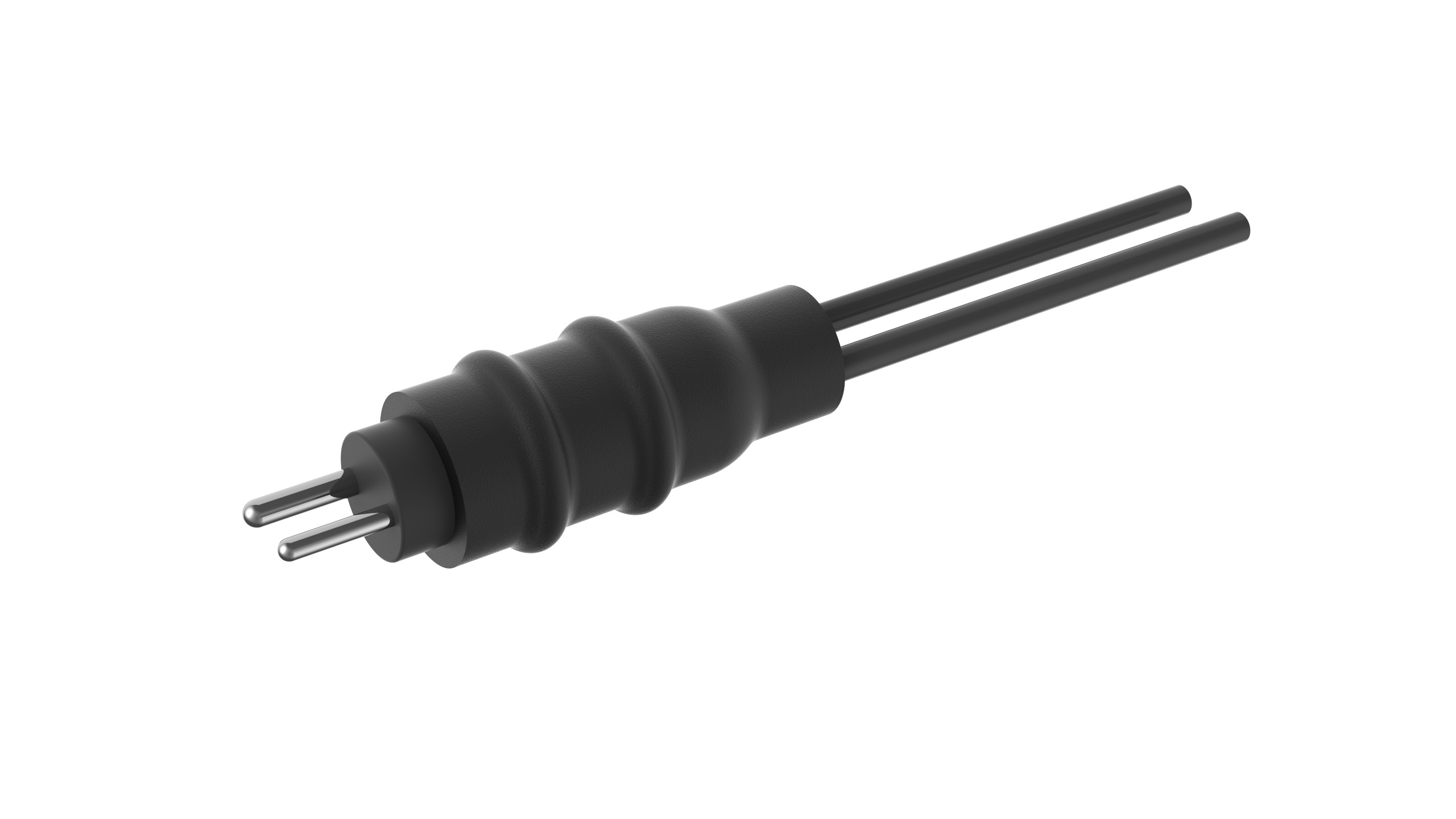

KD503, Secondary Connector

KD503 for two single core wires >

Like KD 501/502, KD503 connectors have also been industry requirement for over 30 years. This connector is also silicon filled but used with two single core wires. Connector is fast to install, approx. 1min. KD 503 connectors are FAA certified.

KD6P, KD6R, KDC6P, KDC6R, BC SERIES, BREAK-AWAY CONNECTOR, ADM6

KD6 frangible break-away connector >

Frangible KD6 connector is designed with break-away point and protected with a special sleeve. Upon an impact, connector breaks safely and doesn’t cause additional hazard, like ignition with kerosin. KD6 connectors are fully compliant with ICAO Aerodrome design manual Part 6, frangibility requirements.


Accessories

Series of EFLA secondary circuit accessories provide flexibility and easiness to installation complexity. Y-connectors enable two loads after one AGL series transformer, and counter wise, one load after two AGL transformer. In addition there are several special plugs and receptacles available.

icon-dowload-grey





Download datasheet to find out more >

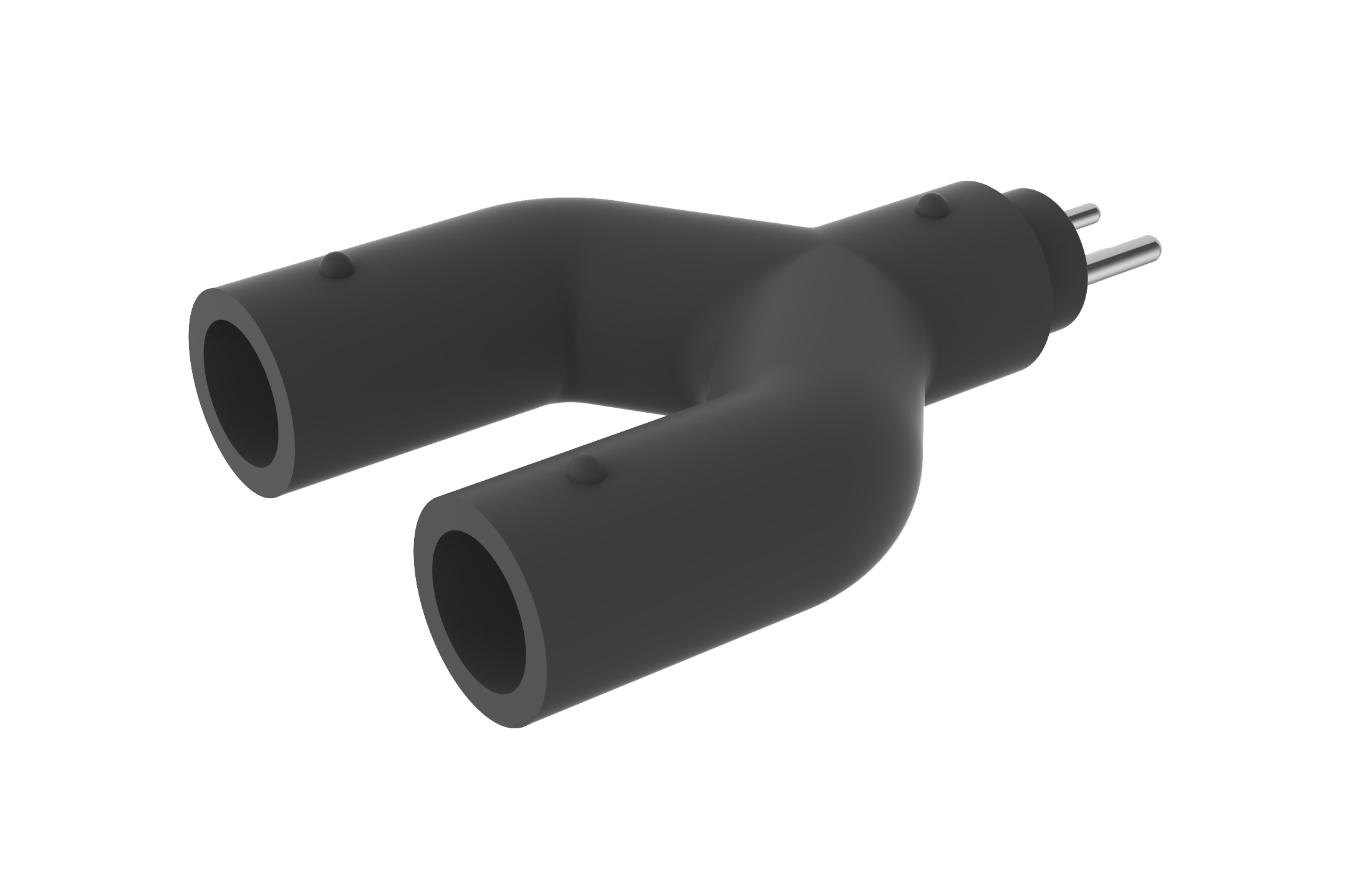

KDCY, secondary y-conector (png)

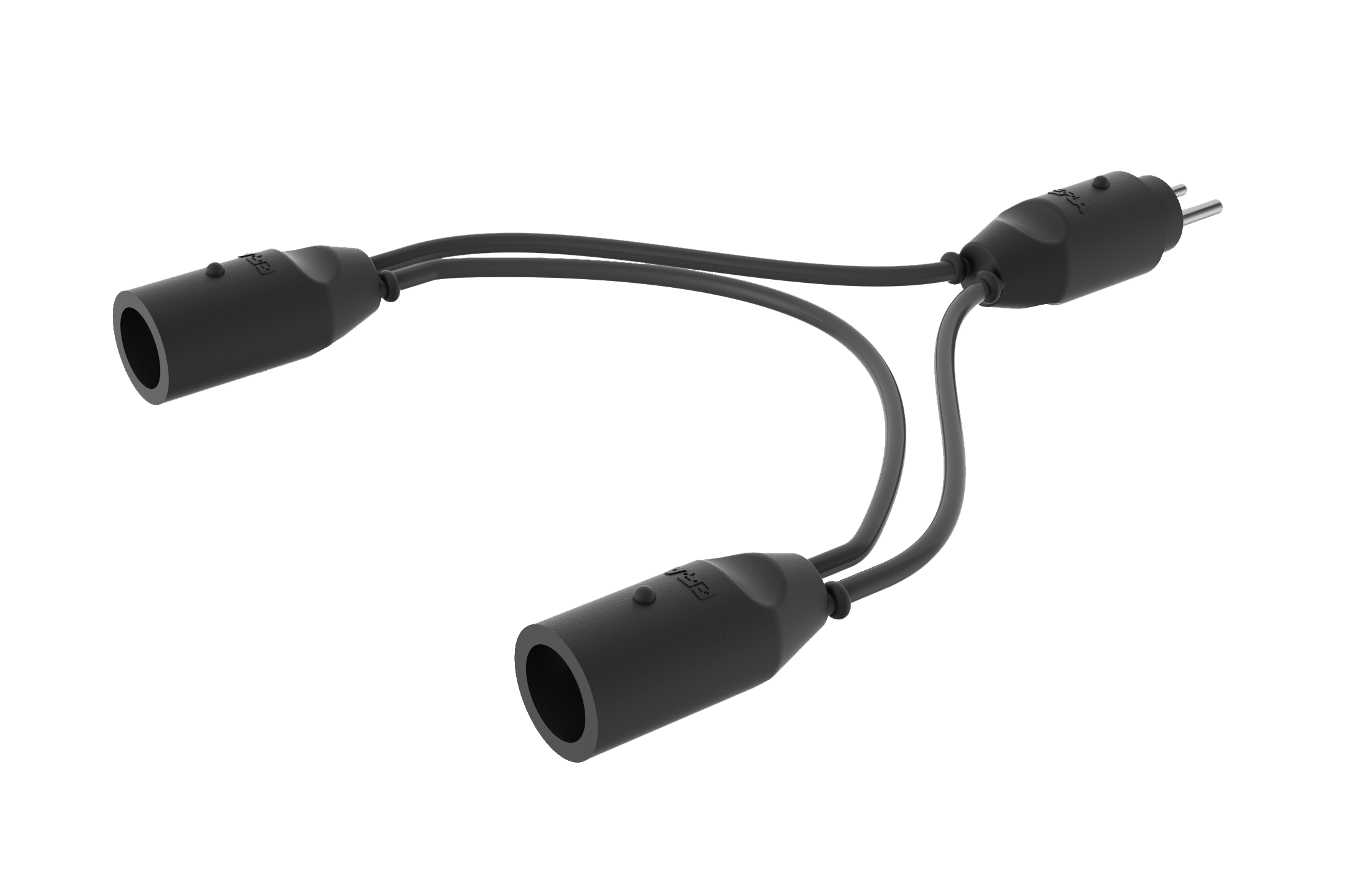

KDCA.P2R, Secondary Circuit Y-Connector to use two loads after one AGL series isolating transformer (png)

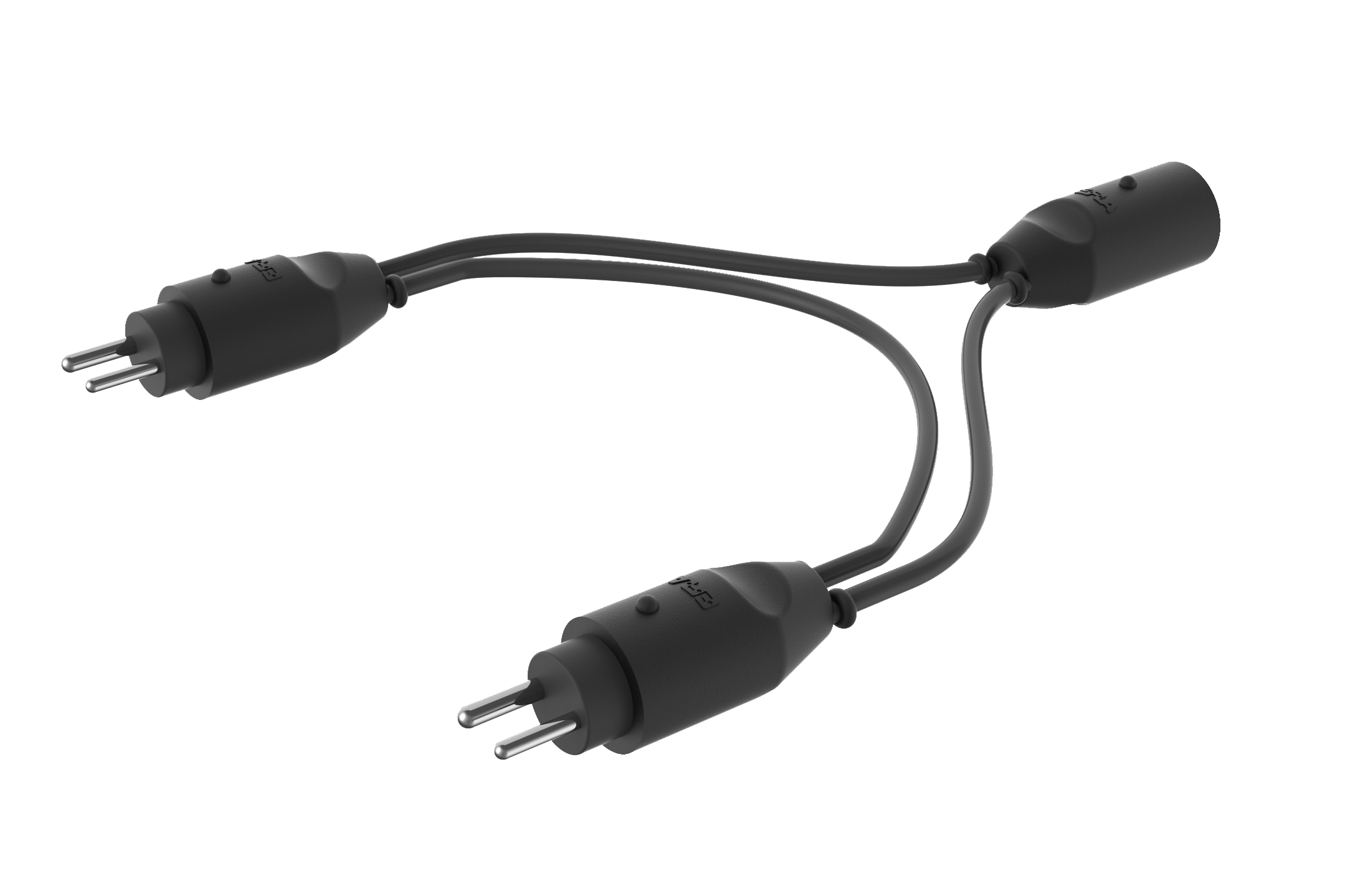

KDCA.2PR, Secondary Y-Connector to use two AGL series isolating transformers (png)

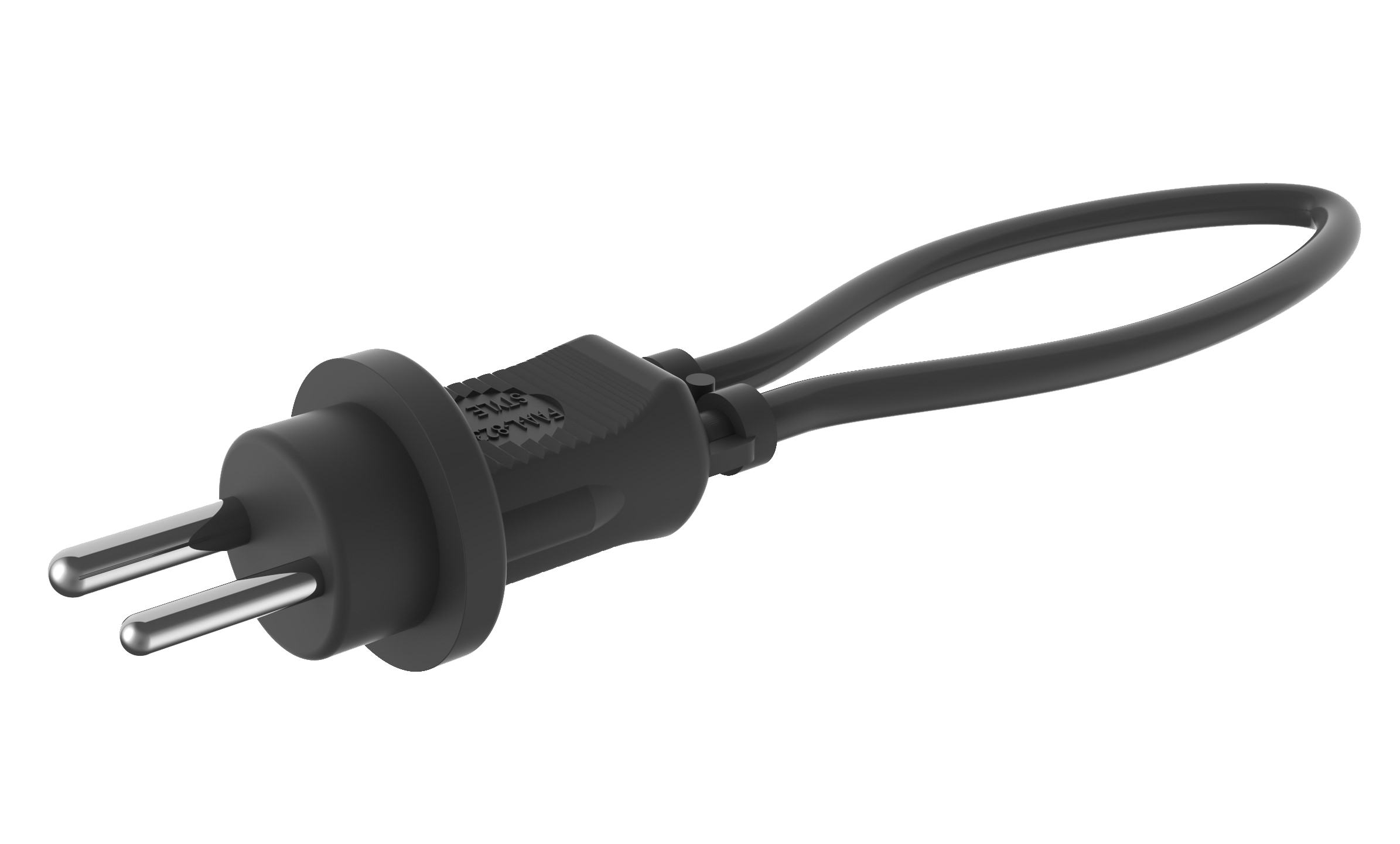

KDC506.SHORT, Short-circuiting secondary connector (png)
