Prefabricated leads

Faster and more reliable circuit installations

Prefabricated leads

FAA AC 5345-26 Class A, type I and II, FAA-L-824, MIL-C-3432, ICEA S-66-524, MIL-C-4921

Fastest and the most secure way to build an AGL circuit is to use factory molded prefabricated leads. They provide 100 % adhesion between connector housing and cable, minimizing human error during installation work.

EFLA prefabricated leads and extension cords provide watertight and durable connection to any environments. Prefabricated primary lead`s nominal rating is 5000 V/25 A and secondary lead`s  nominal rating is 600 V/20 A.

EFLA prefabricated leads are manufactured and delivered according to requested cable length and they are available with all FAA Style options. Special prefabricated leads to meet the frangibility requirement are also available.





Get our product catalogue

Enter your email to download our product catalogue and discover the full range of our products.

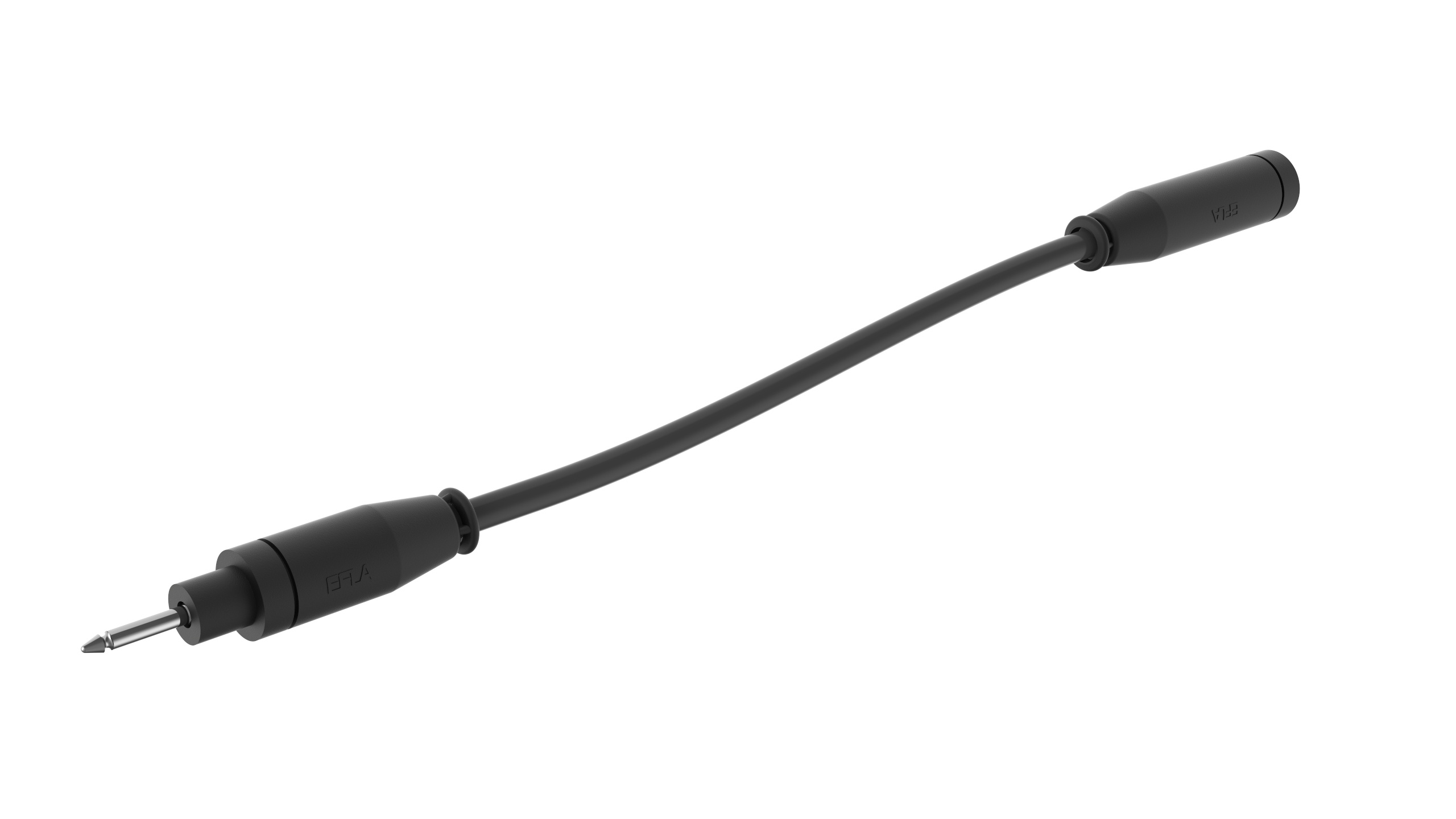

KDCE510, Prefabricated Lead

KDC primary leads for unscreened cable >

KDC primary leads guarantee highest possible dielectric strength for AGL circuit, since cable`s outer sheath and all connections involved are made from the same thermoplastic elastomer (TPE) material. Primary leads are delivered either in prefabricated leads or extension cords. EFLA primary leads are manufactured in accordance with the specifications FAA L-824 MIL-C-3432, ICEA S-66-524, MIL-C-4921.

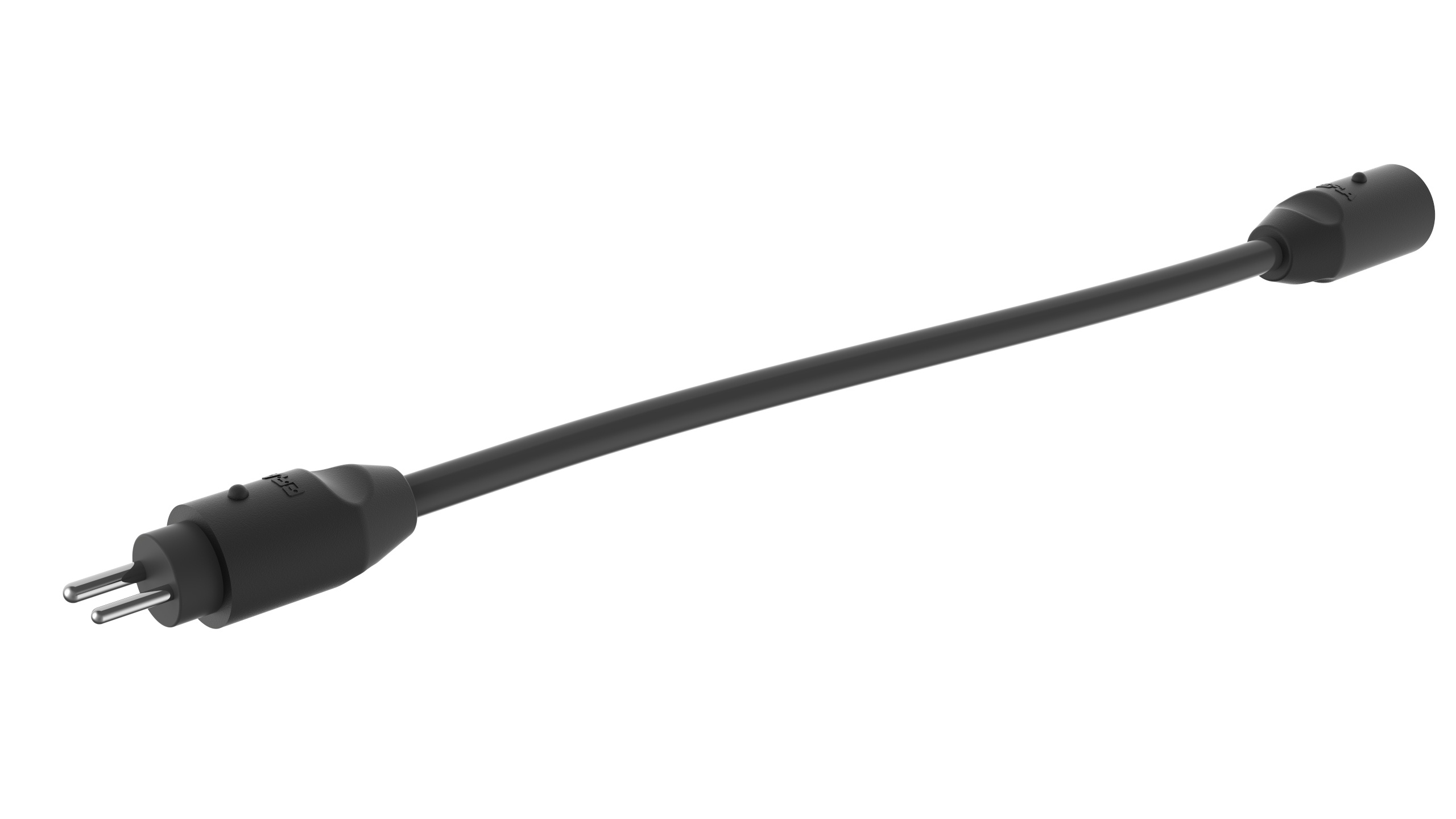

KDCE501, Prefabricated Lead

KDC Secondary leads for two core cable >

KDC secondary leads with double insulated two core cable provides unique dielectric strength for secondary circuit, since cable`s outer sheath and all connections are also made from same thermoplastic elastomer (TPE). Secondary leads are delivered either in prefabricated leads or in extension cords. Secondary leads are available with various cable diameter and with frangible break-away feature. KDC secondary leads are FAA Certified.

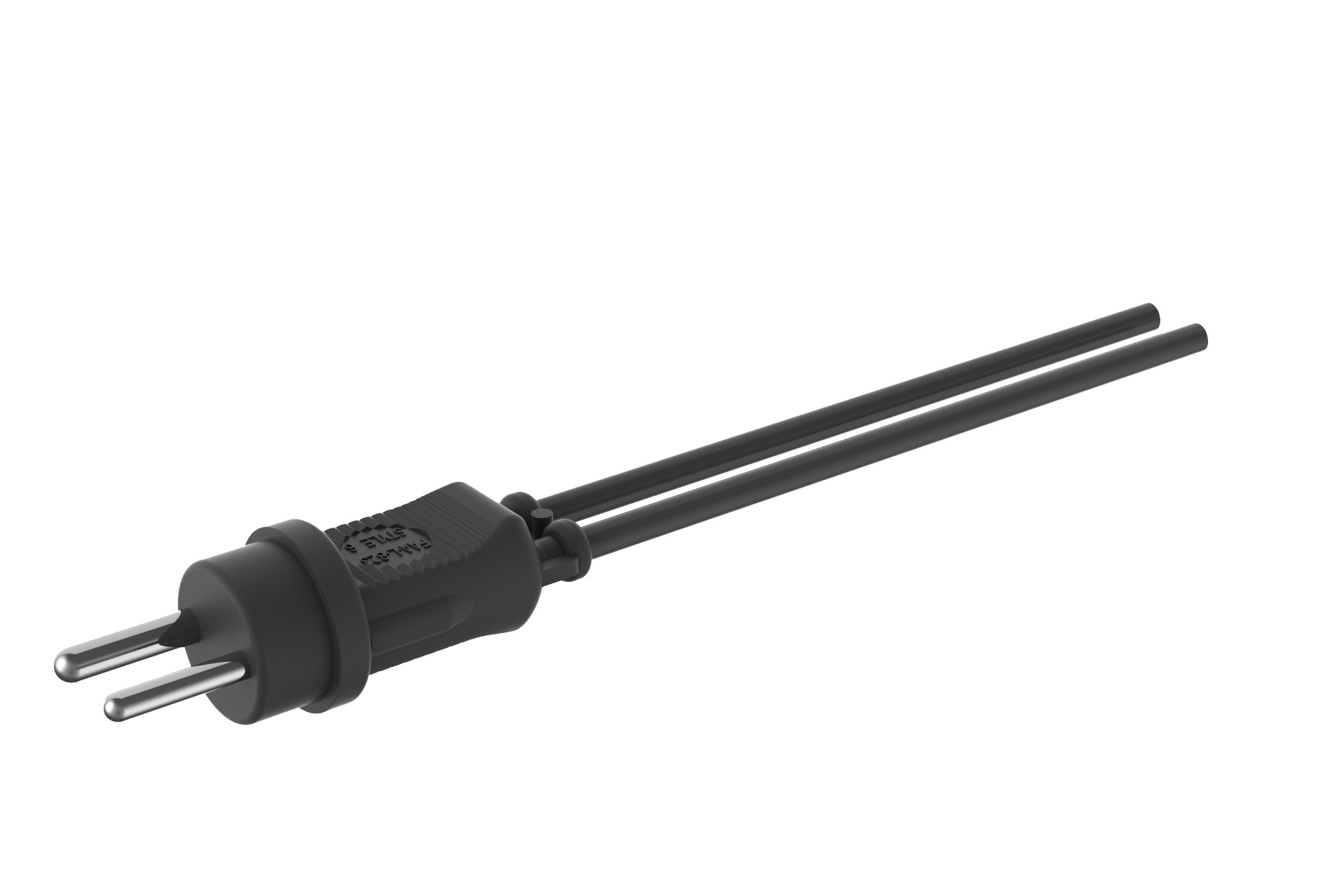

KDC605S, Prefabricated Lead

KDC Secondary leads for two single core wires >

KDC secondary leads with two single wires are also made from same thermoplastic elastomer (TPE), providing highest possible dielectric strength in installation. These secondary leads are available with various wire diameters and with extended temperature range feature. KDC secondary leads for two single wires are FAA Certified.

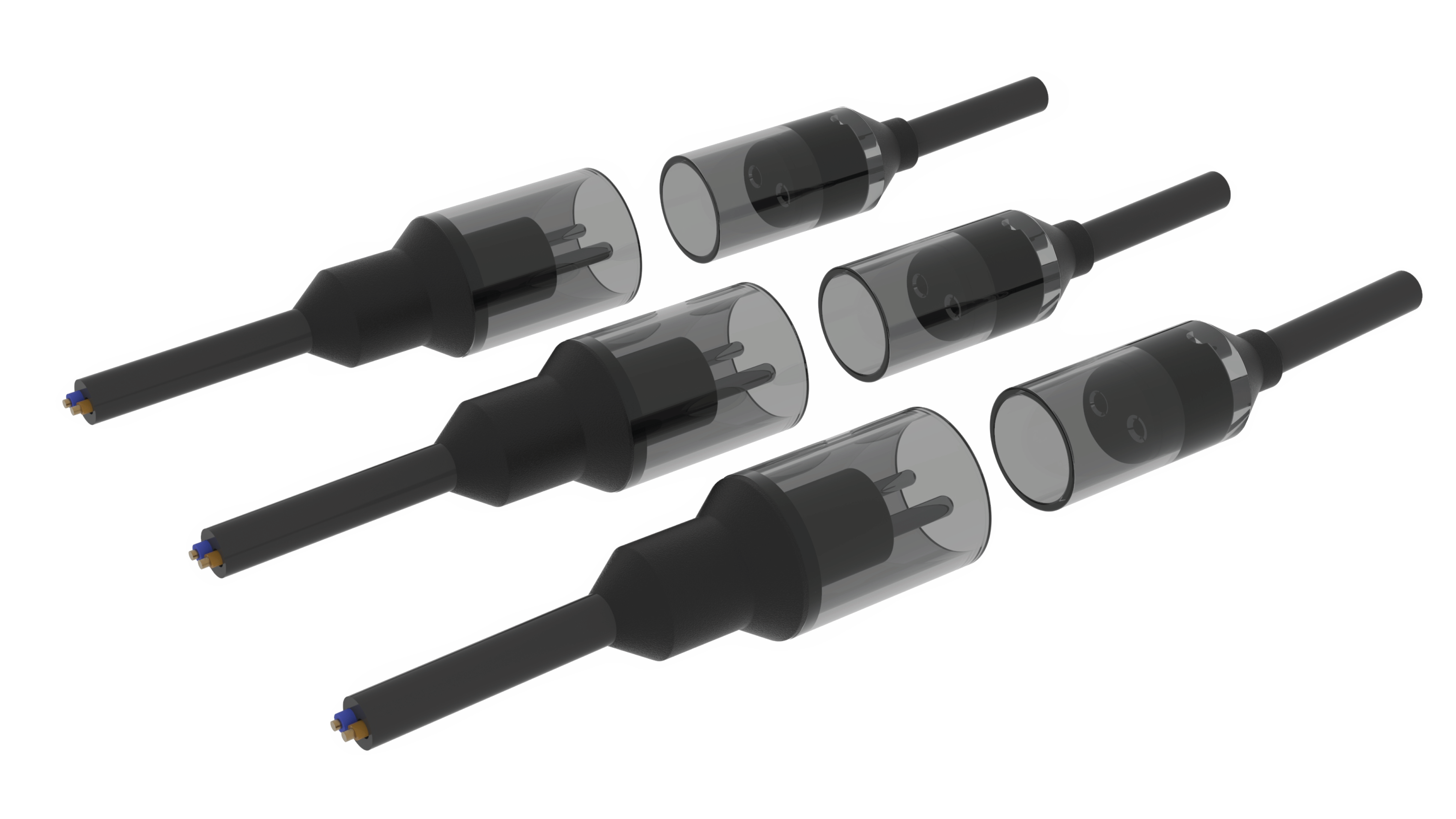

KDCE6 Installation

KDCE6 extension cords for frangible masts >

KDCE6 prefabricated extension cords are equipped with a special break-away connector that opens safely from specific points, prevents cable rupture, and minimizes the risk of any additional hazards. Break-away extension cords are fully compliant with ICAO Aerodrome Design Manual Part 6, Frangibility requirements.


Prefabricated cable assemblies

P2R & 2PR Y-connectors to secondary circuit

Y-connector P2R is an easy way to divide the secondary circuit into two parallel circuits. Connector is optimal for flexible installations as distance between connectors is 20 cm. Current rating is 20 A and voltage rating is 600 V.

 Y-connector 2PR is an easy way to combine two series transformer to one load. Connector allows flexible installation as distance between connectors is 20 cm. Current rating is 20 A and voltage rating is 600 V.



icon-dowload-grey



Download datasheet to find out more >

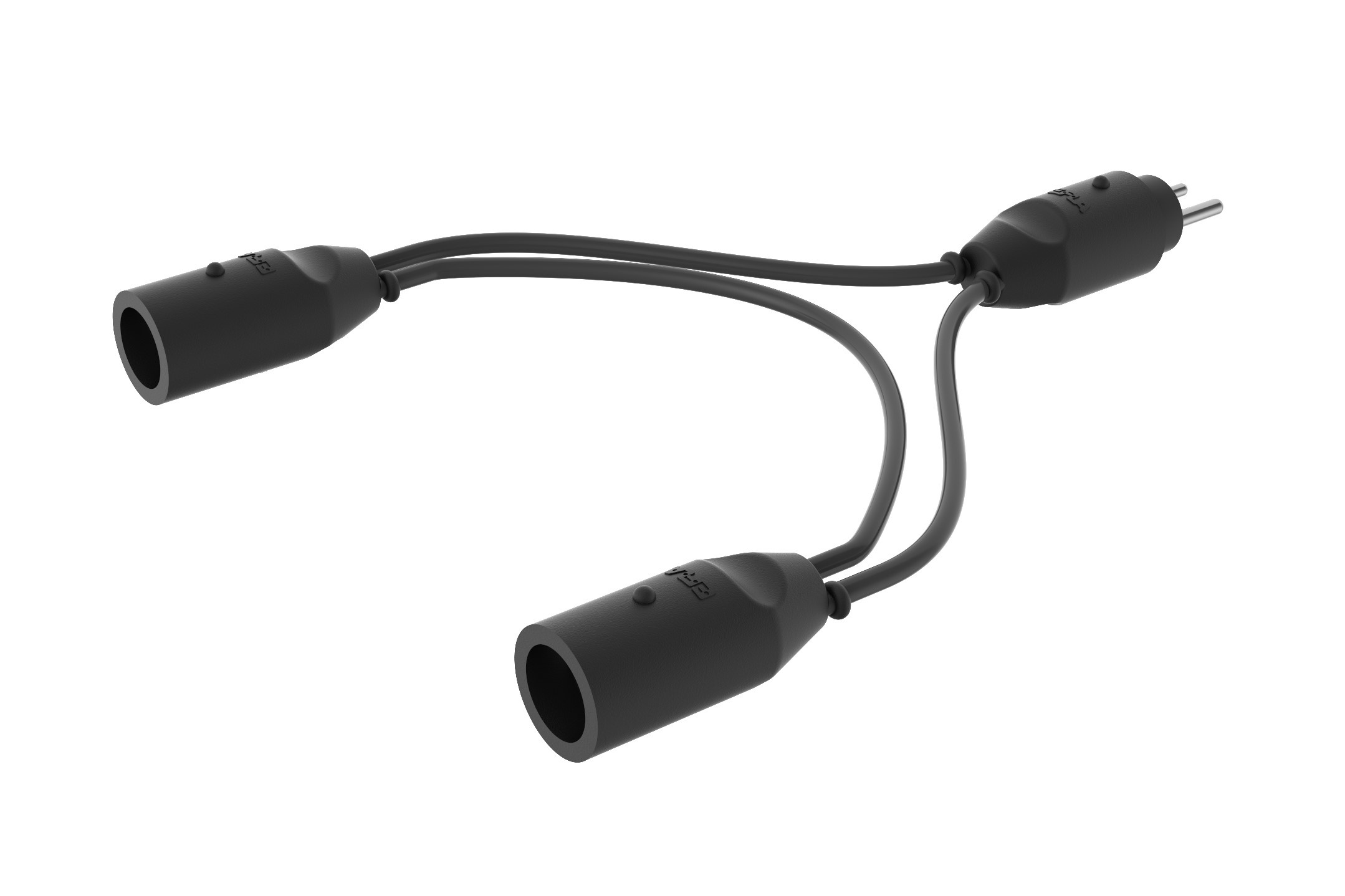

KDCA.P2R, Y-Connector

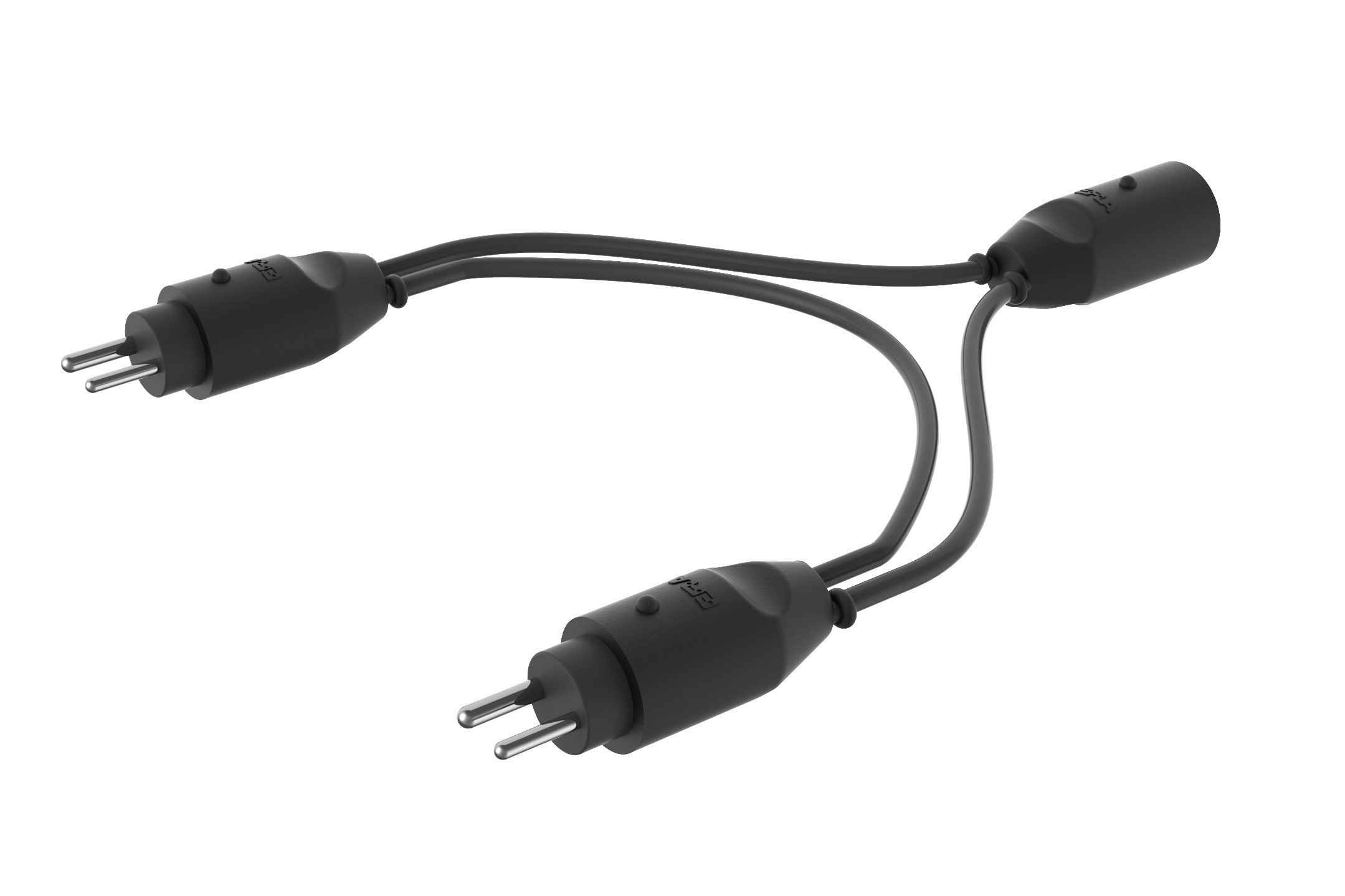

KDCA.2PR, Y-Connector
