TRANSFORMERS

Toroidal shape for maximized energy efficiency

AGL Transformers

FAA: AC 150/5345-47C, IEC61283, ICAO: Aerodrome design manual Part 5, paragraph 3.2.1.7

High quality transformers provide continuous and disturb free power supply to AGL circuit equipment. The transformer also isolates the lights from the medium voltage series circuit to deliver reliable performance and improved safety for operating personnel.

All EFLA`s transformers are toroidal shape design, which provides superior electrical performance. Toroidal is symmetric "donut" shape which ensure lowest possible leakage inductance. This is why EFLA transformers are the most energy efficient and due to lowest minimum electromagnetic interference comply with all existing and future AGL circuit equipments.

Transformers are certified by FAA and approved by IEC. They also comply with ICAO annex 14 and several national standards.



Get our product catalogue

Enter your email to download our product catalogue and discover the full range of our products.

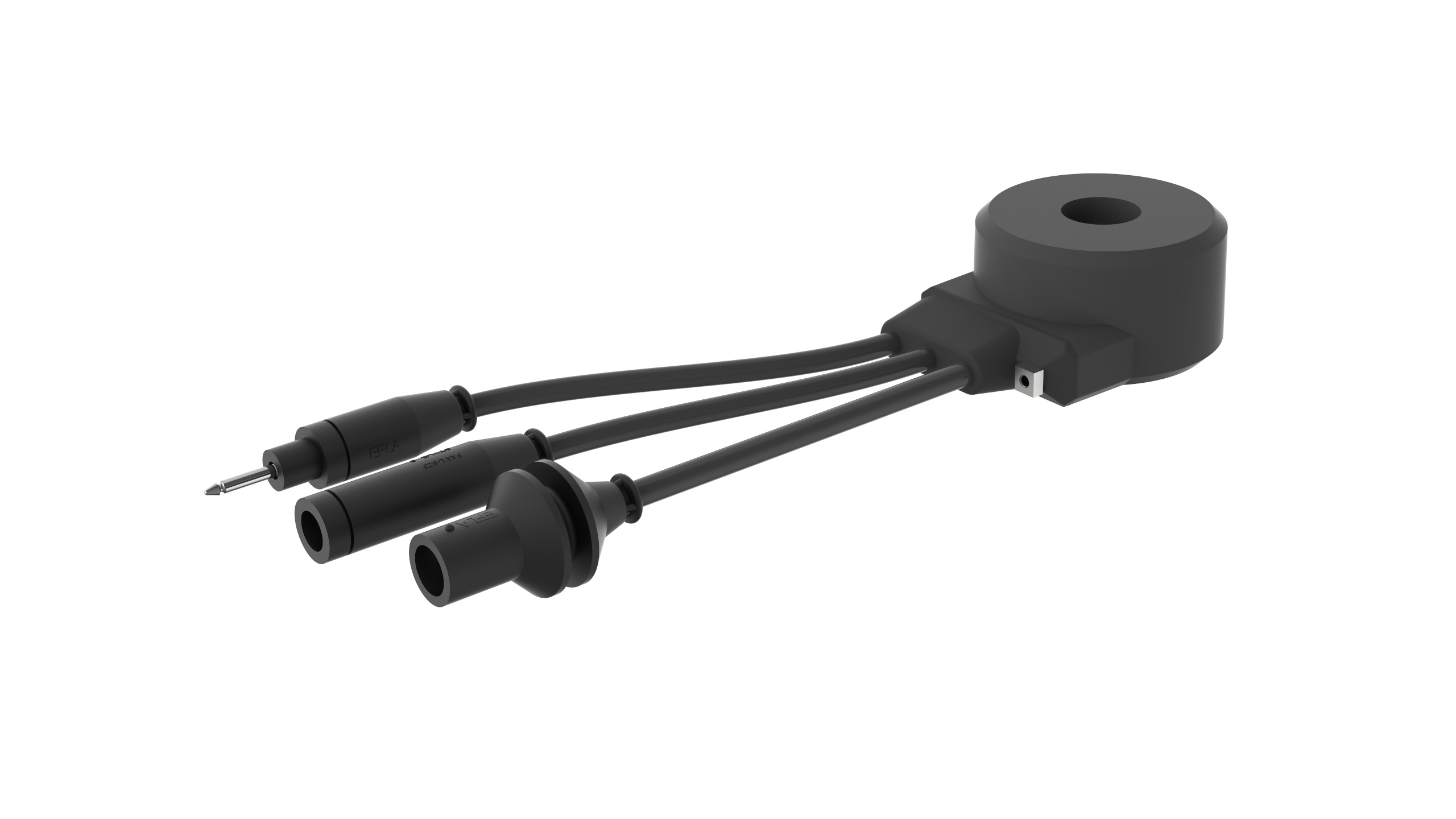

4_1

KR500 transformers to series circuits >

KR500 is used to supply the current in the AGL circuit and to provide a separation point between the primary and secondary circuits. KR500 series offers standard transformer features.

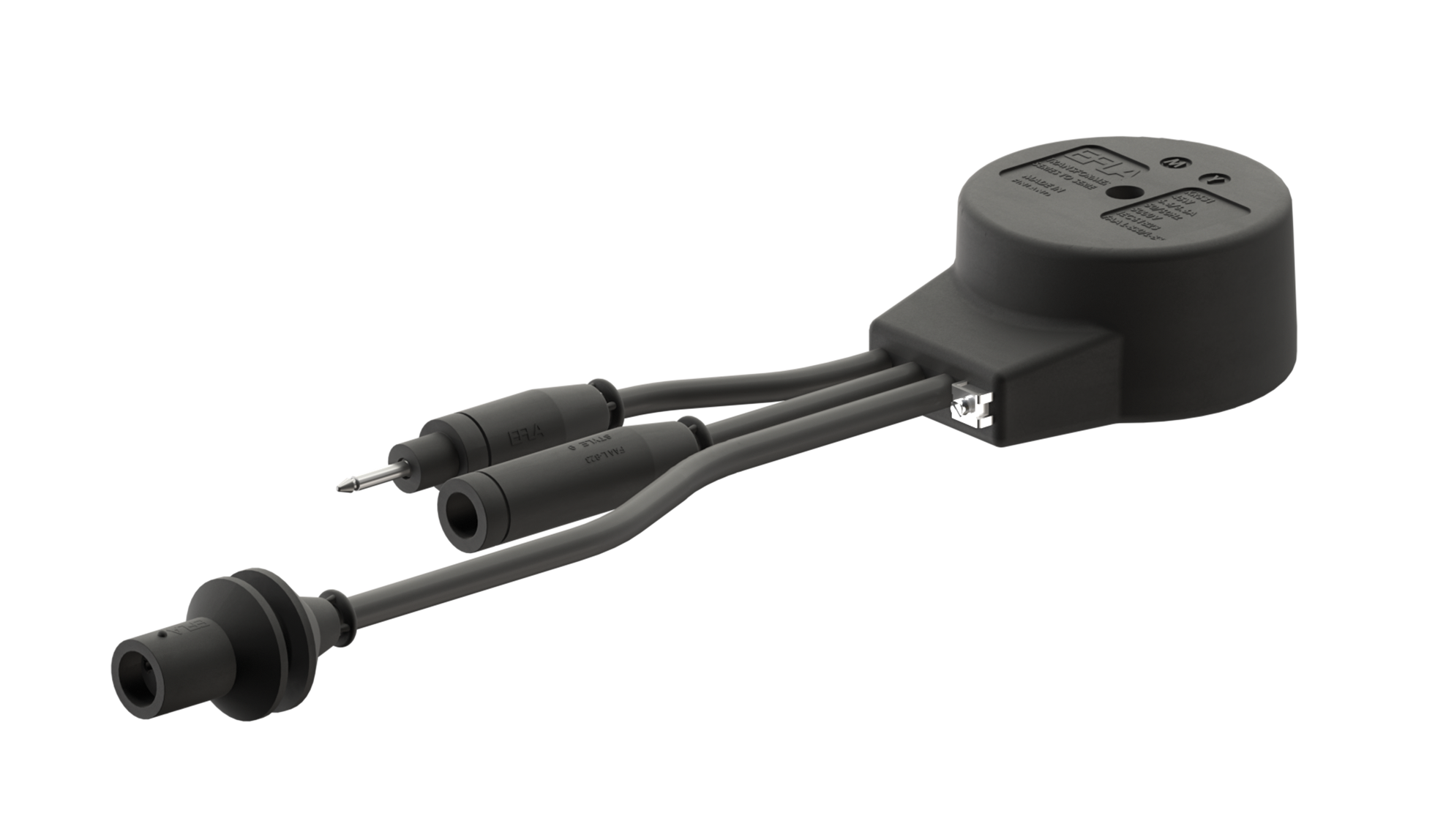

KR600_for_website

KR600 low-leakage transformers to series circuits >

KR600 series design provides very low leakage inductance. It supports single lamp control and other advanced control and monitoring equipments. KR600 is the most energy efficient transformer in the market due to low leakage design.

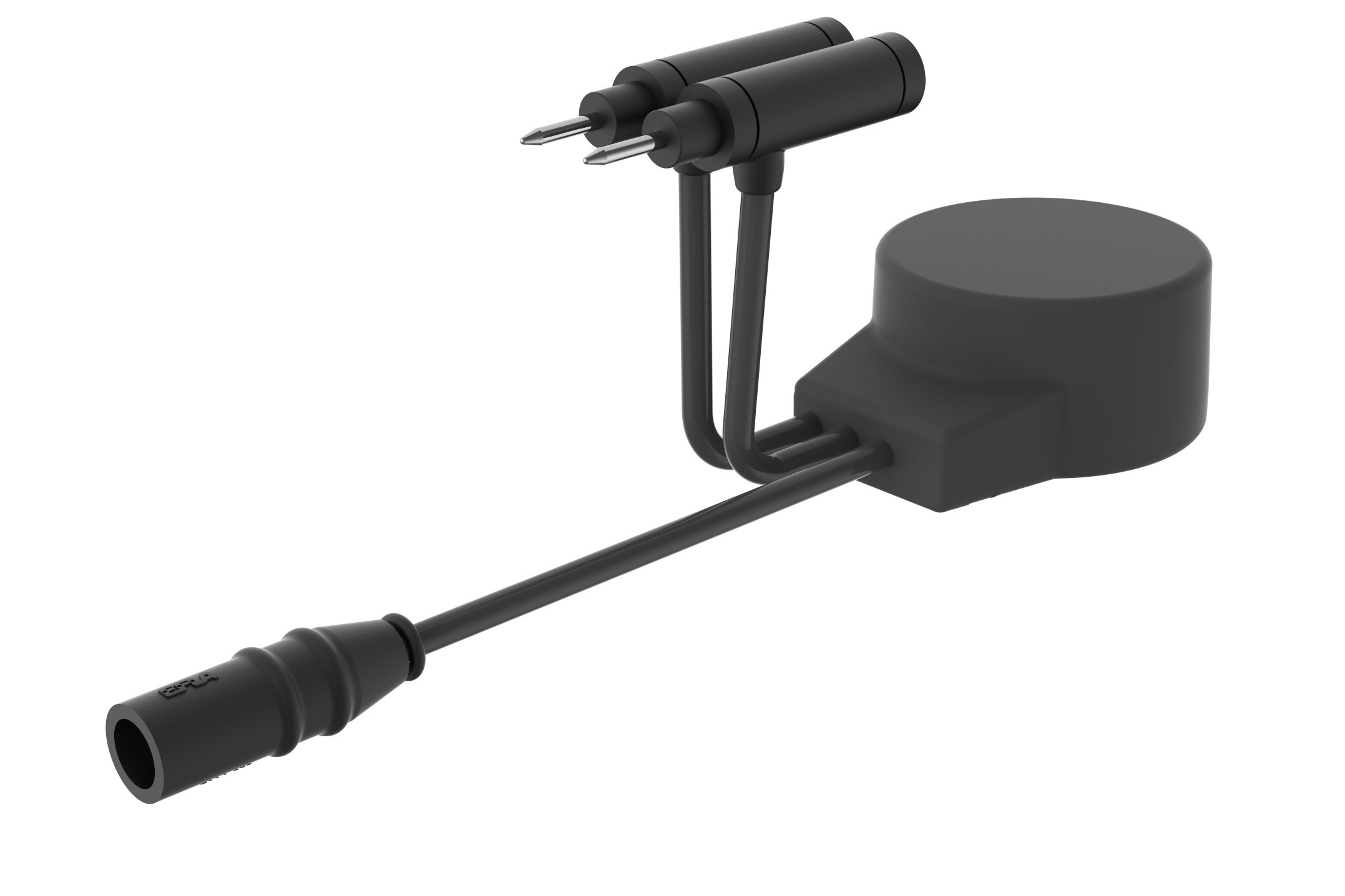

KRV, Parallel transformer

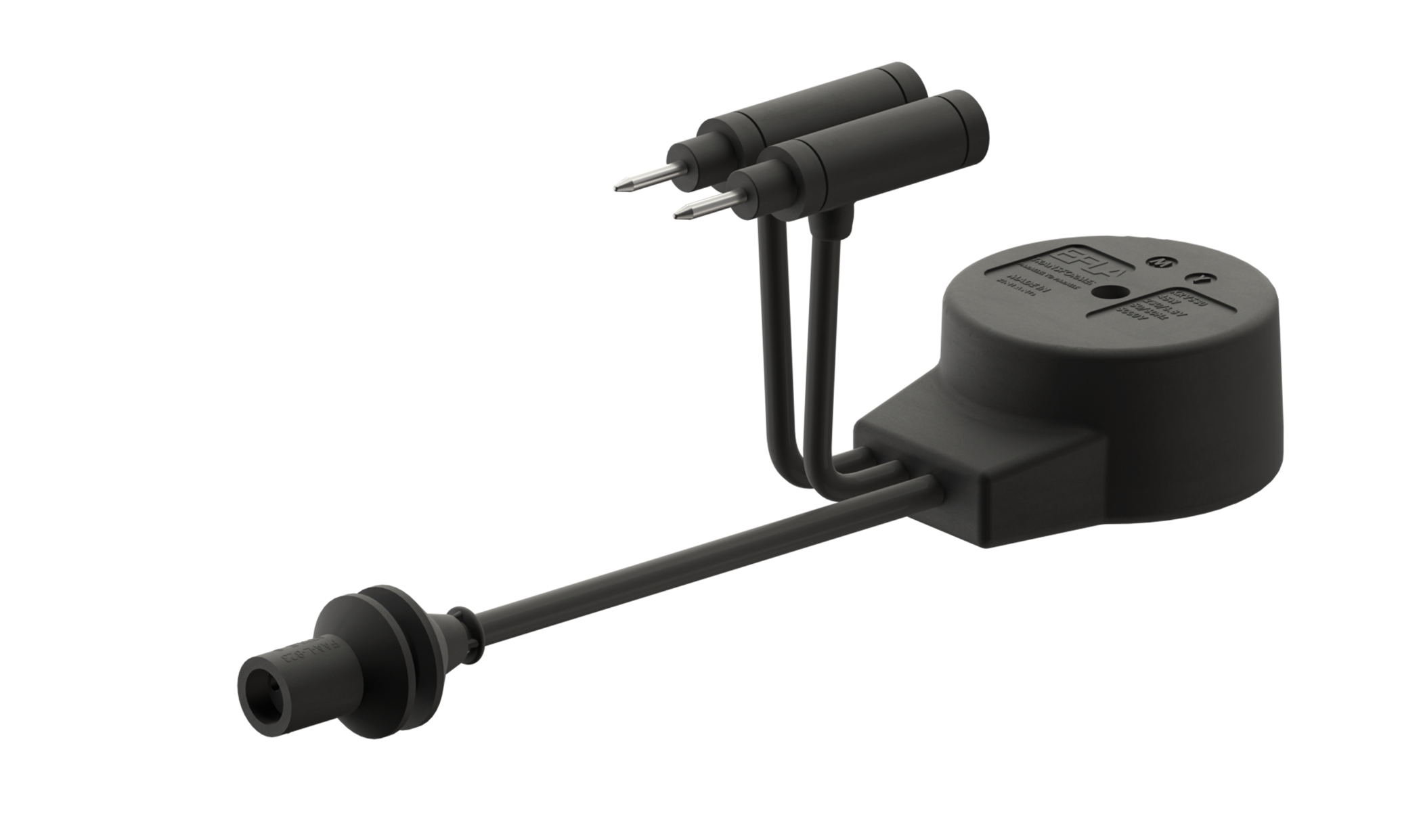

KRV transformer to parallel circuits >

KRV parallel transformers are designed to be connected to a normal line voltage (for example, 230VAC). Transformers supply a certain voltage on the secondary side. They are typically used in heliports and helipads.

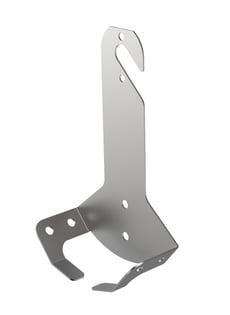

Transformer hanger

stainless steel AISI316

TRANSFORMER HENGAR

Tailor-made hengar to place transformers in good order and away from water and dirt in underground pit holes. There are two ways to install hengar; either by screwing it on the wall or hanging it on rail.

icon-dowload-grey

Datasheet & Installation instructions

Transformer Hanger TS1 >
