AGL Primary Connectors

FAA AC 150/5345-26, L-823, STYLES 3 & 10, CLASS B ICAO ANNEX 14, PART 5, ELECTRICAL SYSTEMS

The primary circuit is the foundation of an AGL system. Connectors are the most sensitive parts of the primary circuit and therefore, high-quality connectors are the easiest way to increase the reliability of airfield lighting circuit.

EFLA connectors provide watertight and durable installation to any environments. Nominal rating is 25 A and 5000 V. Primary connectors are available for screened (shielded) and unscreened (unshielded) cables. Fast and simple installation is guided with attached manuals and visualized videos.

EFLA’s primary connectors are packed and delivered in kits including all the necessary parts for making the assembly on primary cables. Each primary connector kit contains components for a pair (a plug and a receptacle).

Get our product catalogue

Discover the full range of our products and solutions for AGL circuits.

Primary connectors

KDL c/w Cable Gland >

KDL is the most robust and fastest-to-install connector in the market. KDL is fitted with unique cable gland, designed for industry experts requirements for easy and reliable use. KDL connector tolerates well bending and one connector fits to all cable diameters. KDL connectors are Intertek certified to FAA AC.

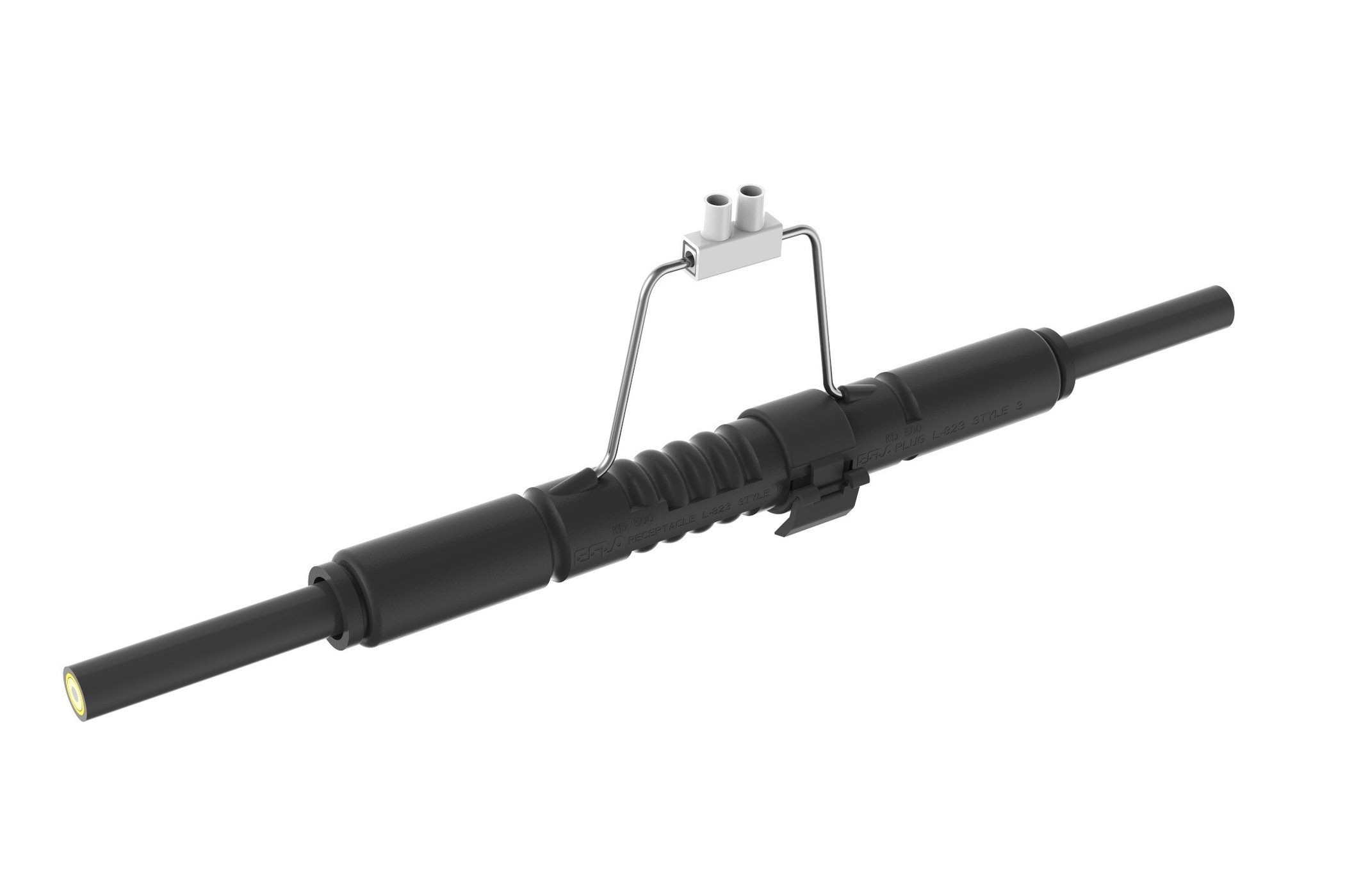

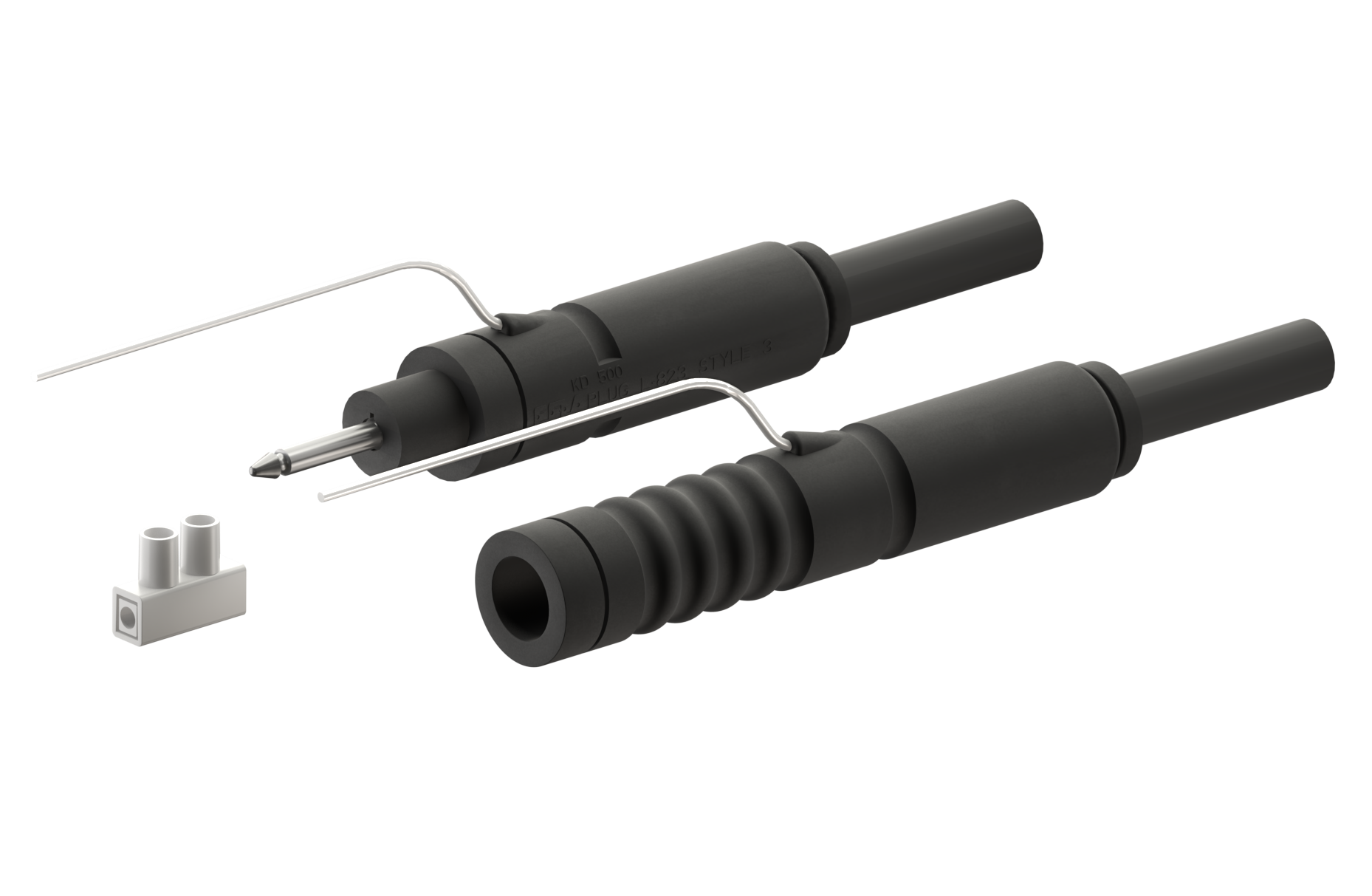

KD Classic >

KD classic primary connector design has been the industry requirement for over 30 years. This silicon filled connector is fast to install and insulated screen continuity is available as an option. KD classic fits with a wide range of cable sizes and KD classic is Intertek certified to FAA AC.

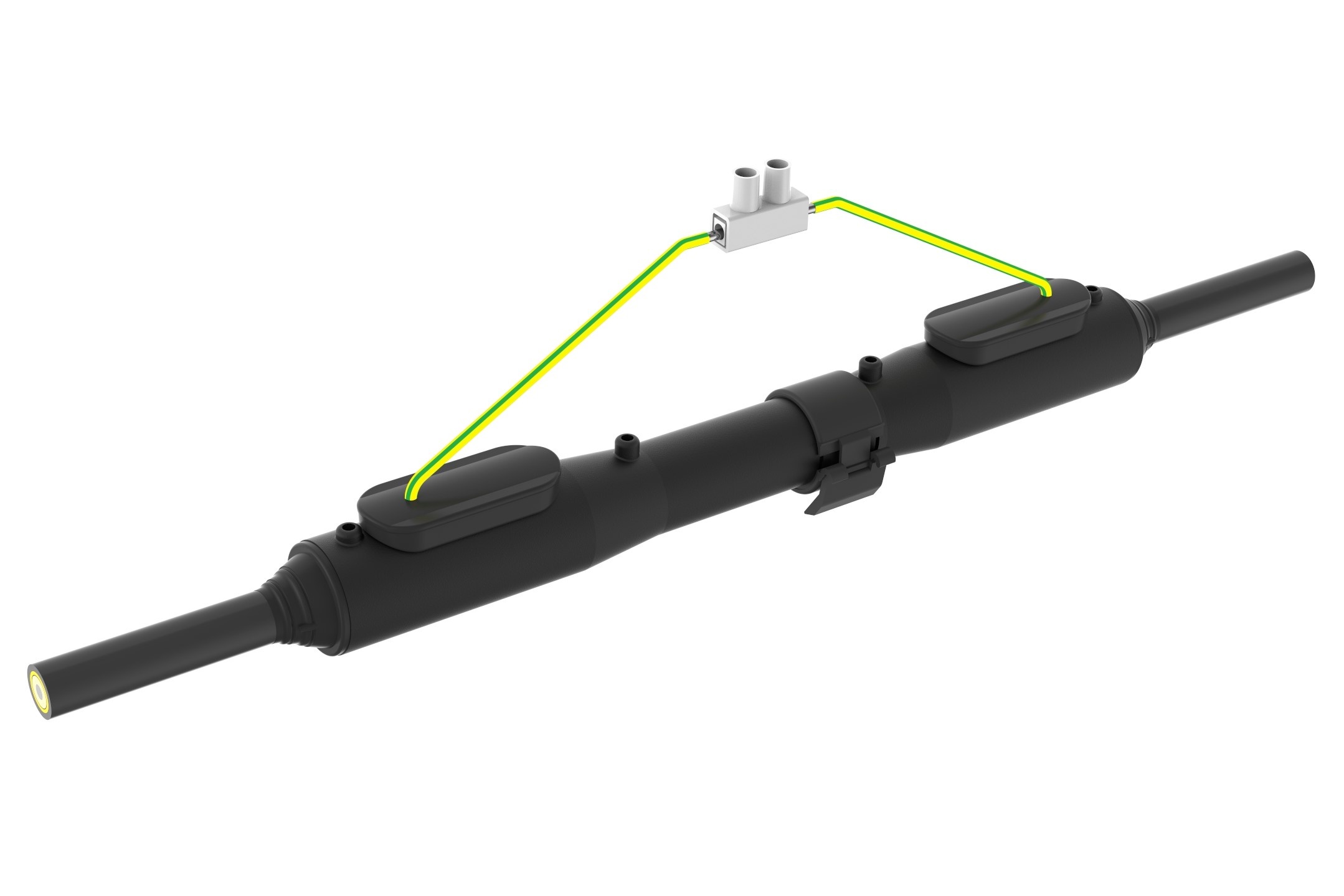

KDR Resin >

KDR resin connector is designed for extreme conditions. KDR connector comes with polyurethane resin, which is poured inside the connector housing upon installation. This provides a permanent connection between connector housing and cable, which cannot be dismantled.

Fixed Cable Joint

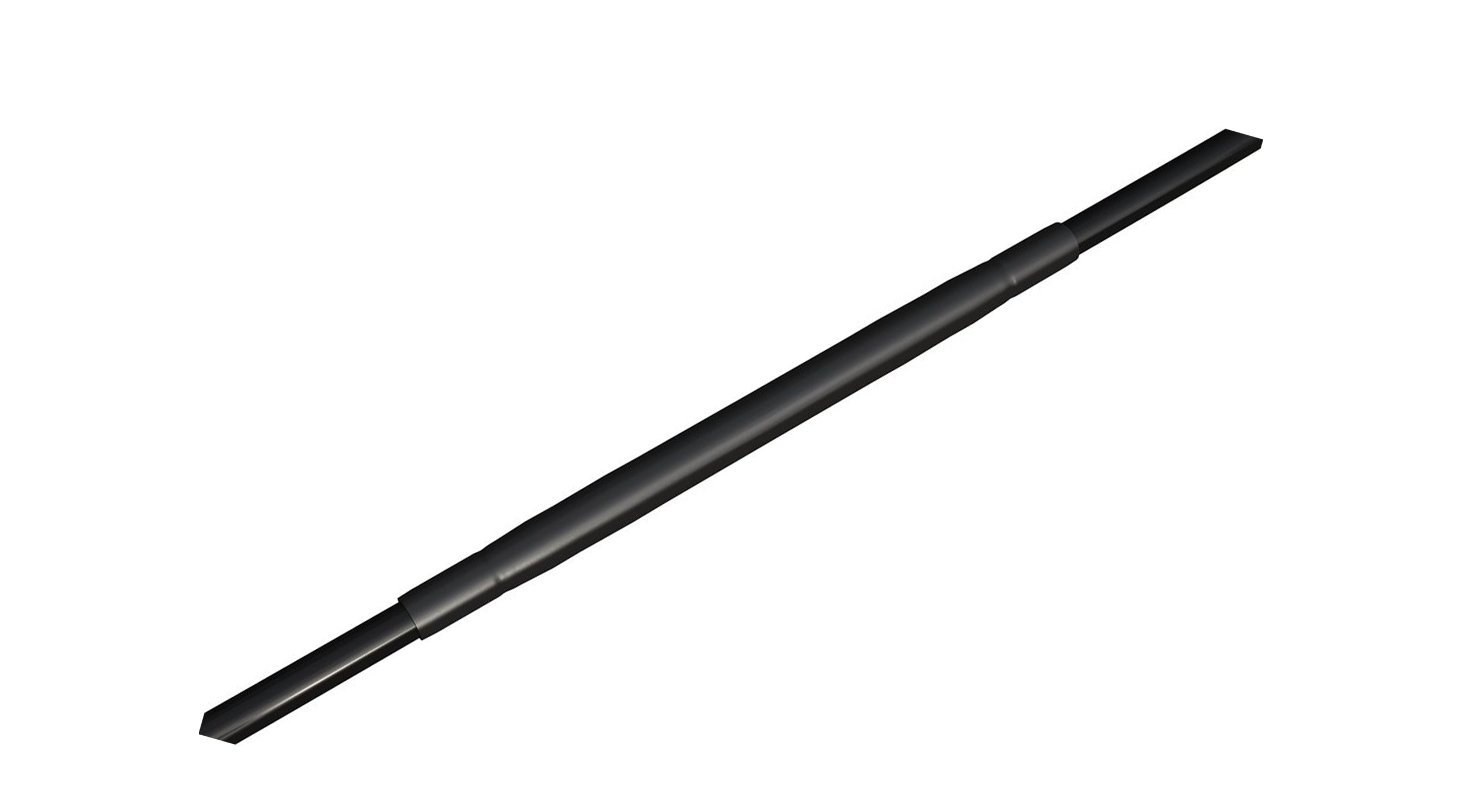

KDF500 >

KDF500 is designed for jointing two primary cables permanently. Typically, joint kits are used instead of connector kits when primary cable is extended. EFLA heat shrink joints are reliable and easy to install. The stress control tube and the insulating sleeve are combined in the joint. This reduces the number of components and makes installation work quicker. KDF fixed cable joints are packed and delivered in kits including all the necessary parts for making the assembly on primary cable. Each fixed cable joint kit contains components for one connection.

Accessories

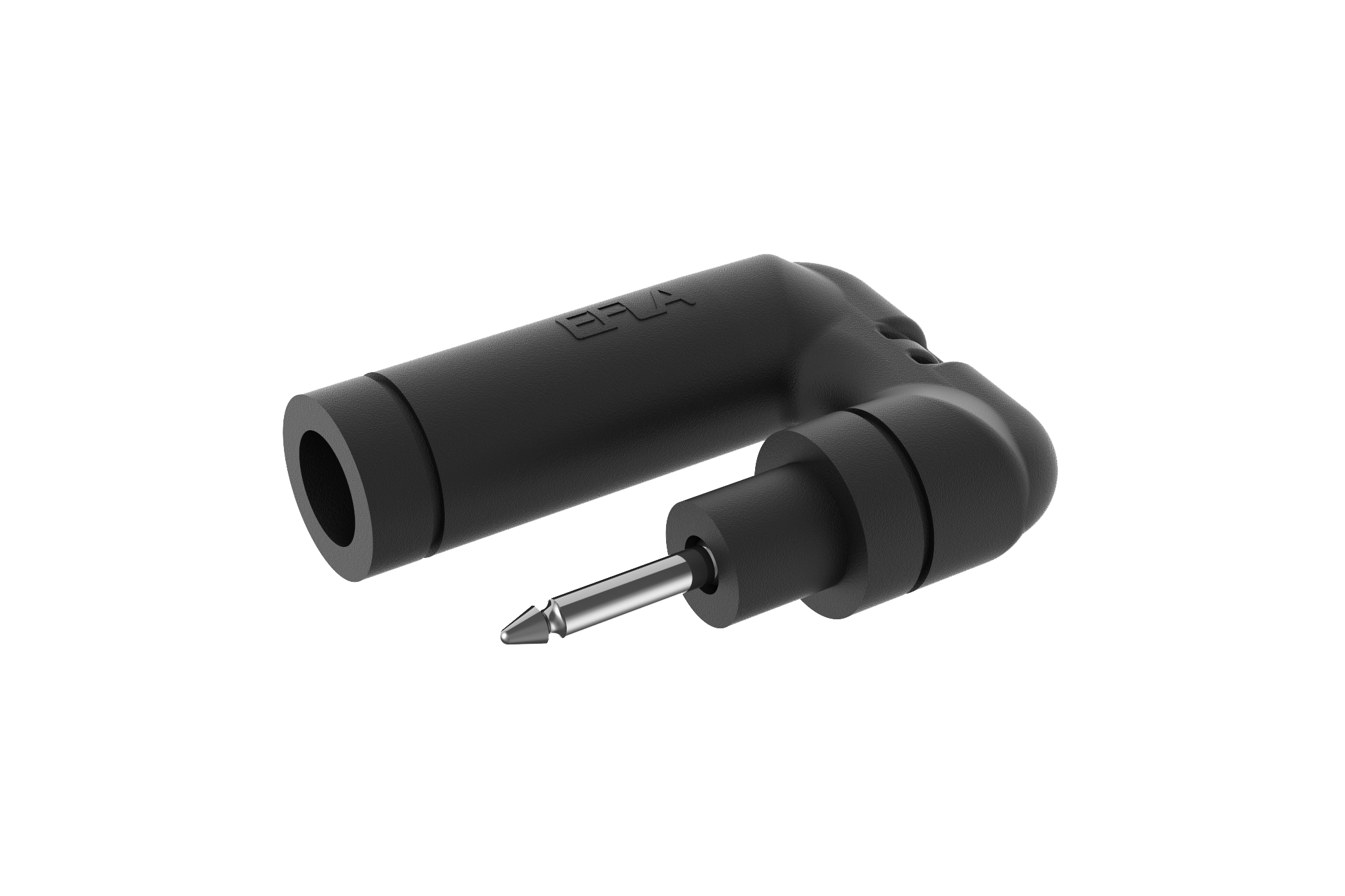

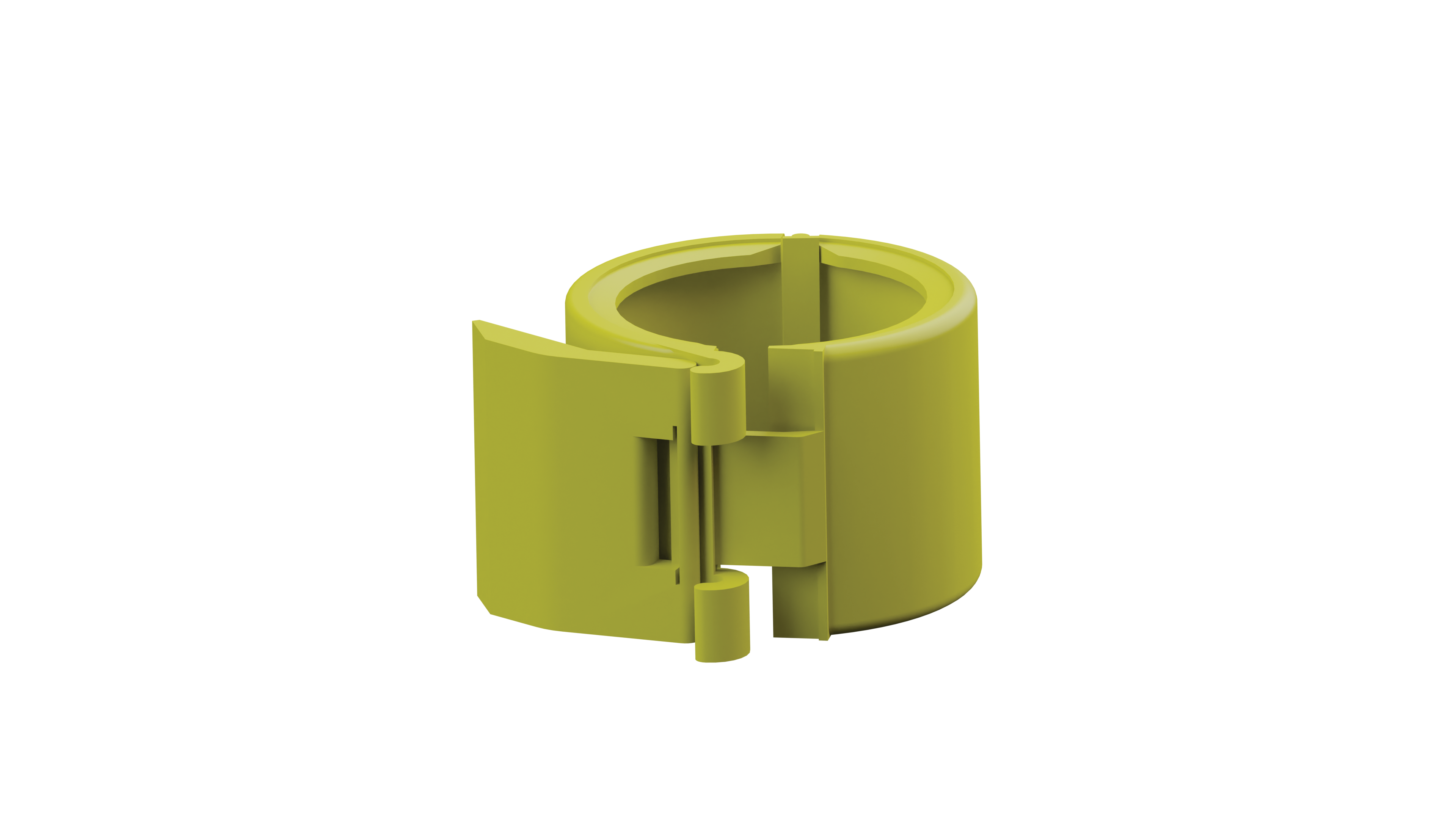

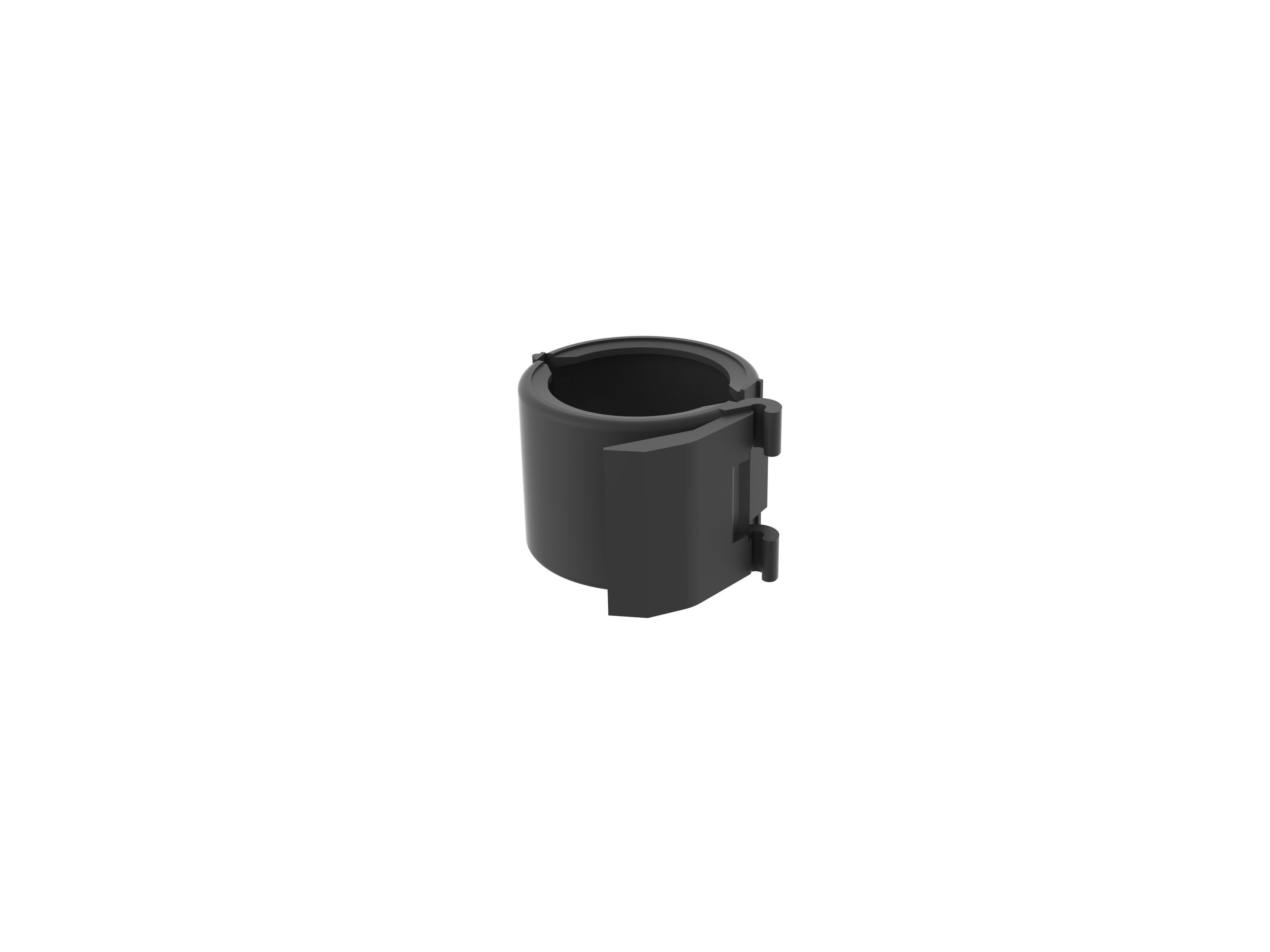

Series of EFLA primary connector accessories provide flexibility and easiness to installation complexity. U-shaped primary adapter enables installations in limited spaces, when the connection length must be significantly reduced. In addition, there are special caps and locks available to protect primary connection from dirt and to increase safety.
