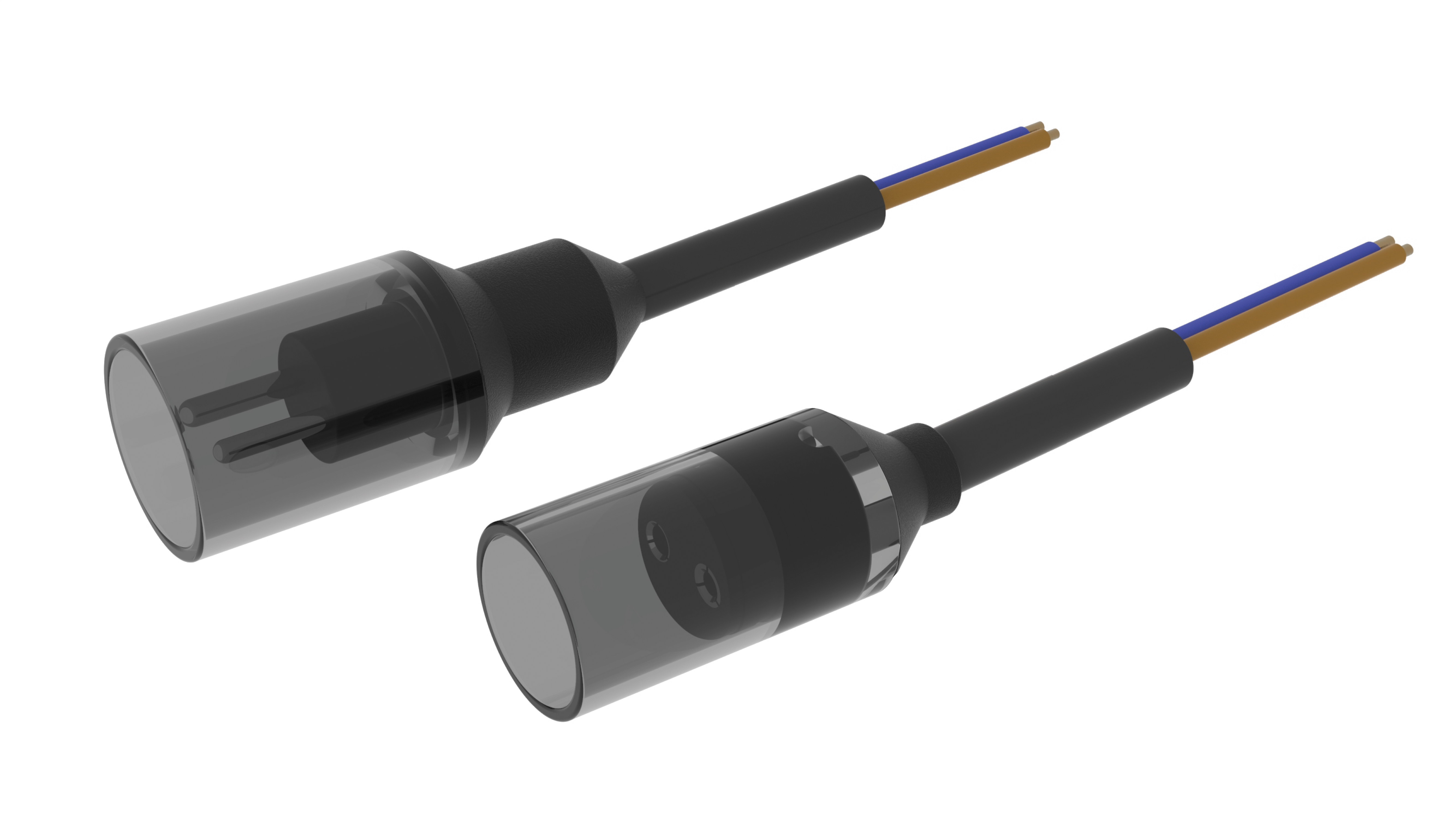

KDC6 - Extension Cords for Frangible Masts

fully compliant with ICAO ADM6

KDC6 prefabricated extension cords is designed with break-away point and protected with a special sleeve. Upon an impact, connector breaks safely and doesn’t cause additional hazard, like ignition with kerosin. KDC6 break-away extension cords are fully compliant with ICAO Aerodrome design manual Part 6, frangibility requirements.

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Nominal rating: 20 A and 600 V
  • Wire diameter 2,8 - 8,0 mm (0.110 - 0.314 inches)
  • Conductor size 1,5 - 6 mm(16 - 10/8 AWG)
  • ROHS compliance with EU directive NO2002/95/EC



KDCE6
KDCE6 Installation
Specification
Datasheet
Certificates

KDC6 FRANGIBLE BREAK-AWAY EXTENSION CORDS

Download recommended specification > KDCE6
