KDC Secondary leads for two core cable

double insulated reliability

KDC secondary leads with double insulated two core cable provides unique dielectric strength for secondary circuit, since cable`s outer sheath and all connections are made from same thermoplastic elastomer (TPE). Secondary leads are delivered either in prefabricated leads or in extension cords. Secondary leads are available with various cable diameter and with frangible break-away feature. KDC secondary leads are FAA certified and fulfill specifications MIL-C-3432, MIL-C-4921 and ICEA S-66-524.

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Cable with dual insulation: EPR-insulated and TPE-sheathed
  • Nominal rating: 20 A and 600 V
  • Style connector variants 1, 2, 7 , 8, and break-away
  • Conductor size 1,5 - 4 mm2
  • ROHS compliance with EU directive NO2002/95/EC
  • Bending radius: 5D

Secondary leads are manufactured and delivered according to requested cable length and either in prefabricated leads (connector in one end) or extension cords (connector in two ends).

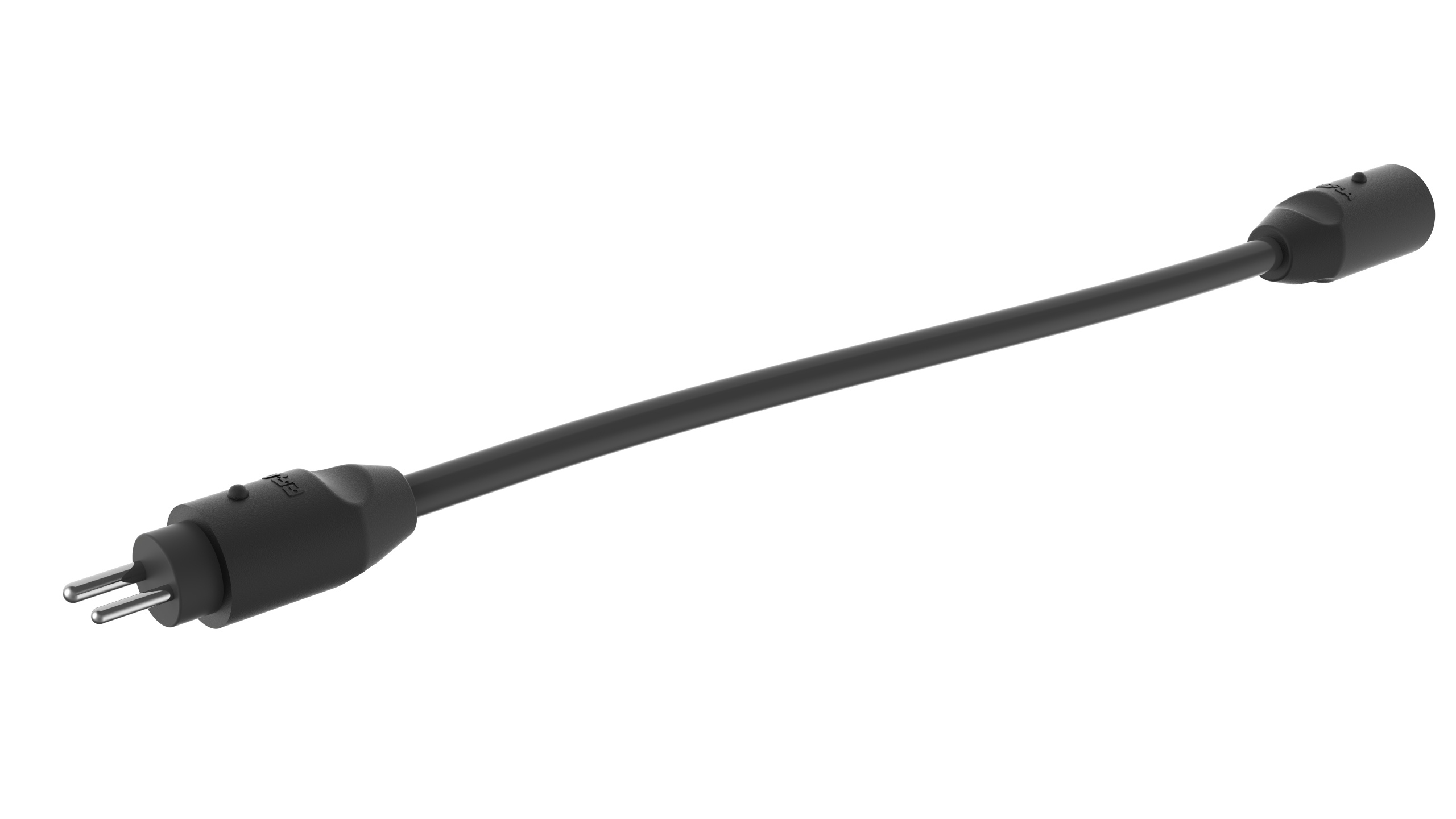

KDCE501, Prefabricated Lead

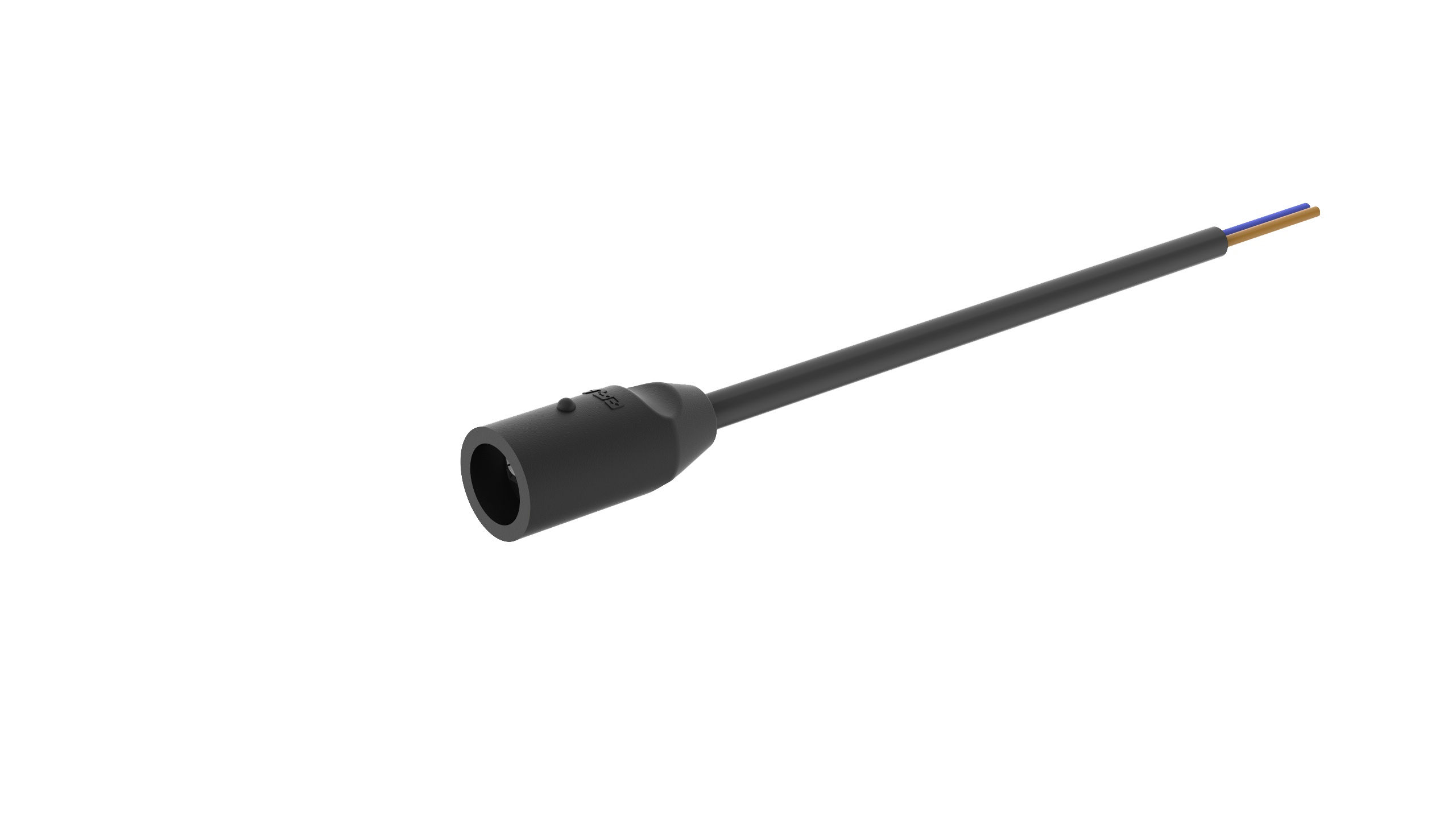

KDC502, Prefabricated Lead

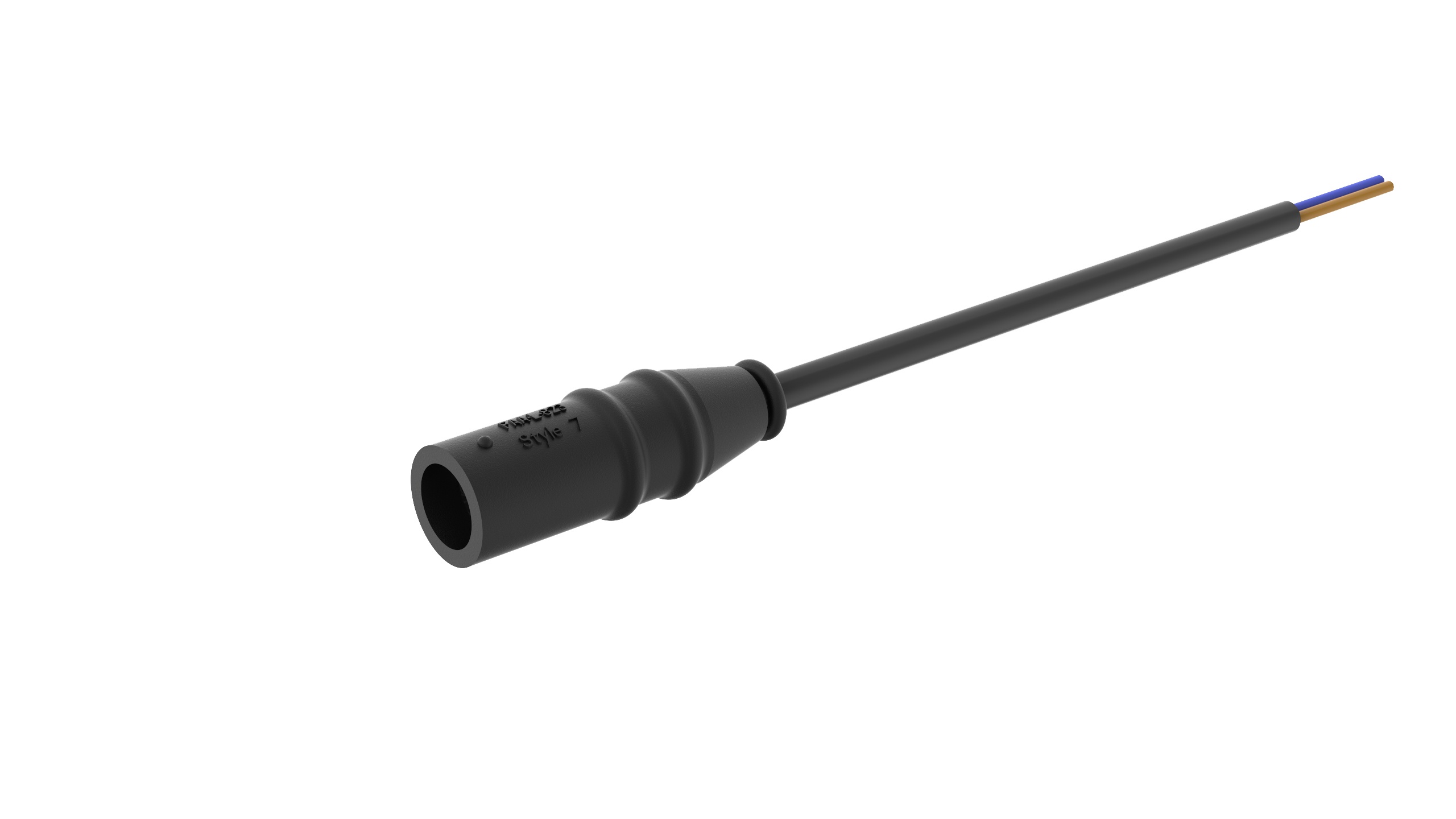

KDC507, Prefabricated Lead

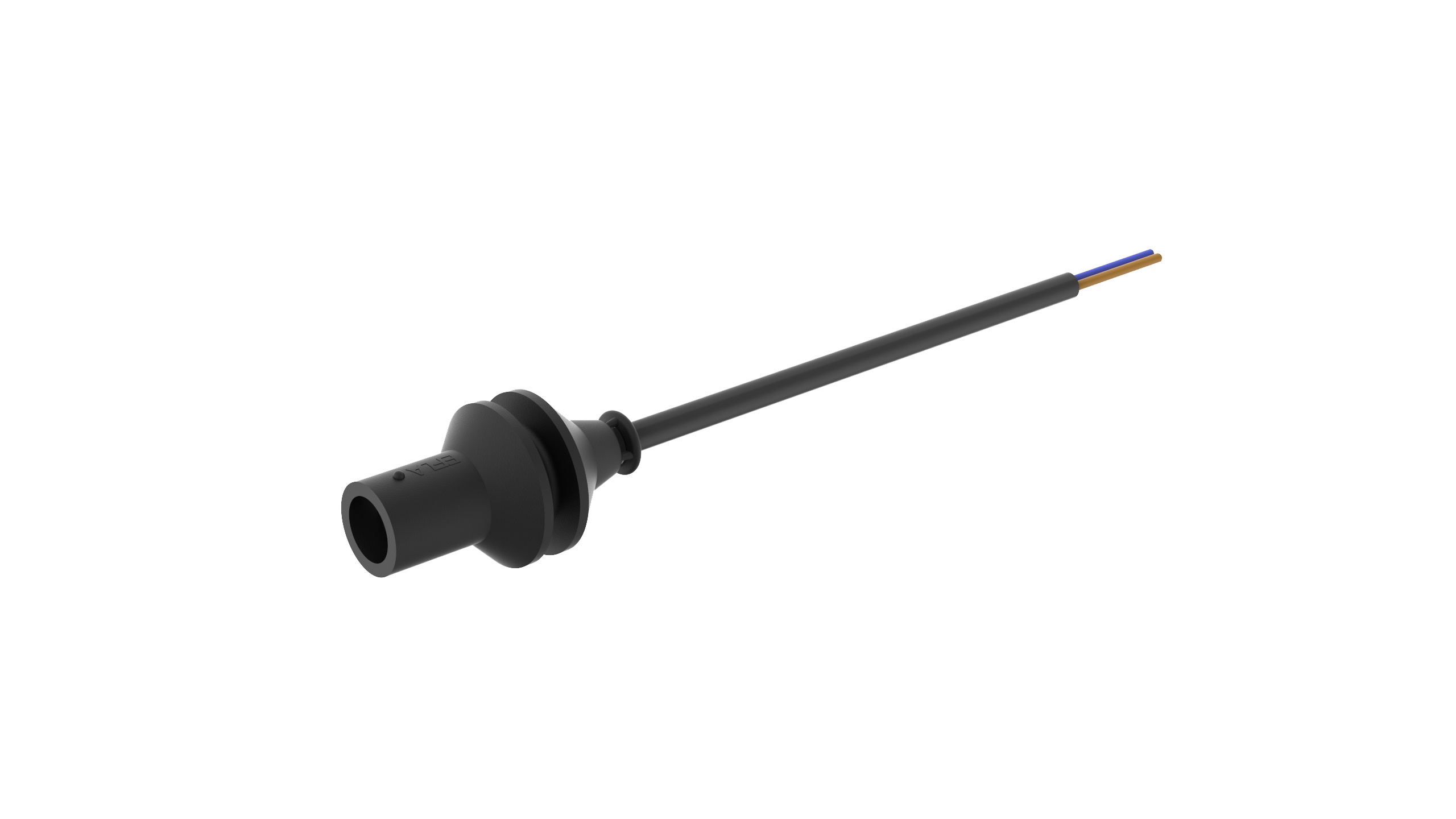

KDC508, Prefabricated Lead

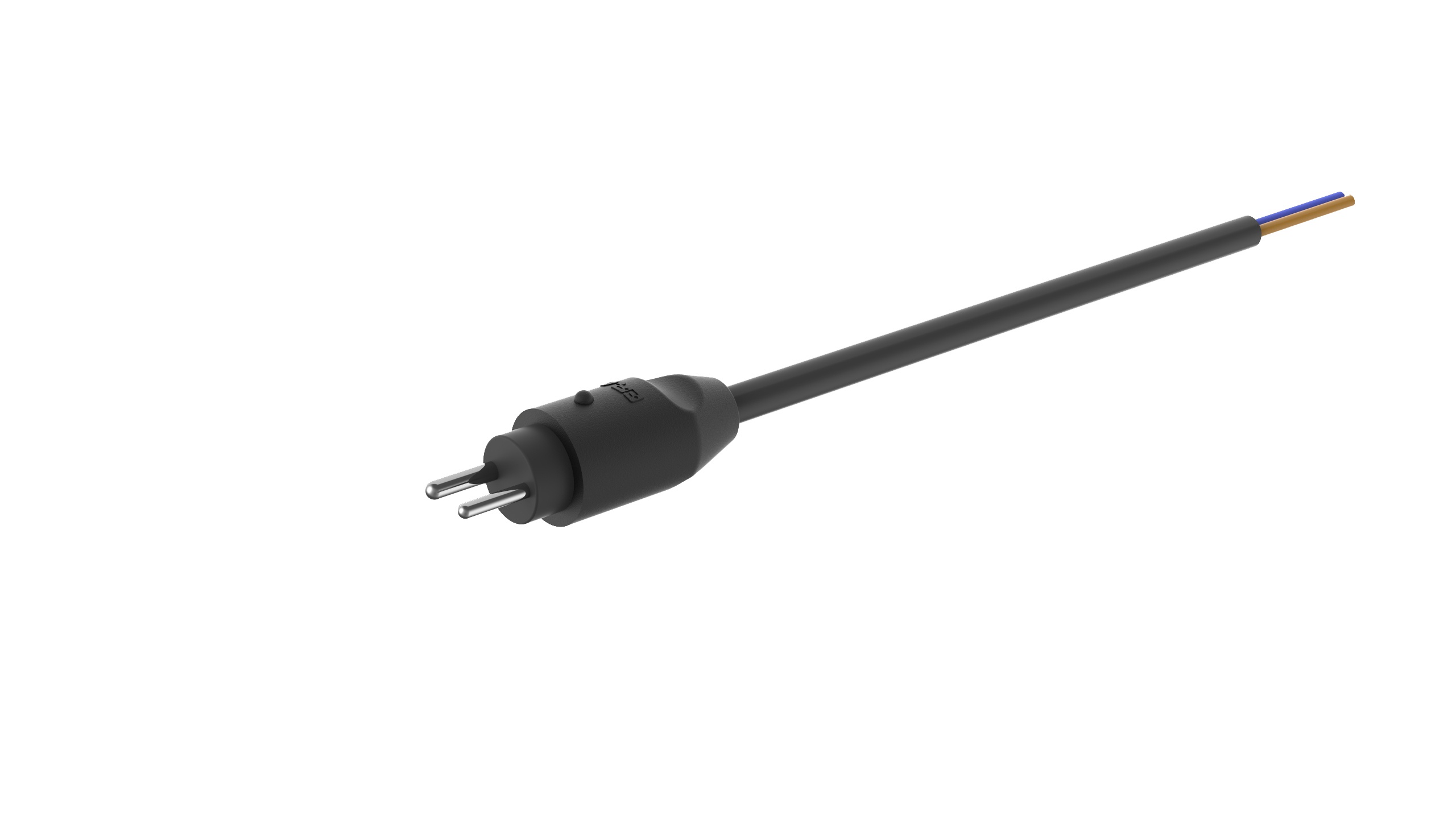

KDC501, Prefabricated Lead
Specification
Datasheets
Certificates

KDC6 FRANGIBLE BREAK-AWAY EXTENSION CORDS

KDCE501, prefabricated extension cord (png)Download recommended specification >
