KDC Secondary leads for two single wires

for higher temperatures

KDC secondary leads with two single wires are made from thermoplastic elastomer (TPE), providing highest possible dielectric strength in installation. Secondary leads are available with various wire diameters and with extended temperature range. KDC secondary leads for two single wires are FAA certified.

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Extended temperature range
    • With Zyrad 150˚C / 300˚F
    • With Teflon 200˚C / 390˚F
  • Nominal rating: 20 A and 600 V
  • Style connector variants 1, 6, 7  and 8
  • Wire outer diameters 2,9 - 11,7 mm x2
  • Conductor size 1,5 - 4 mm2
  • ROHS compliance with EU directive NO2002/95/EC

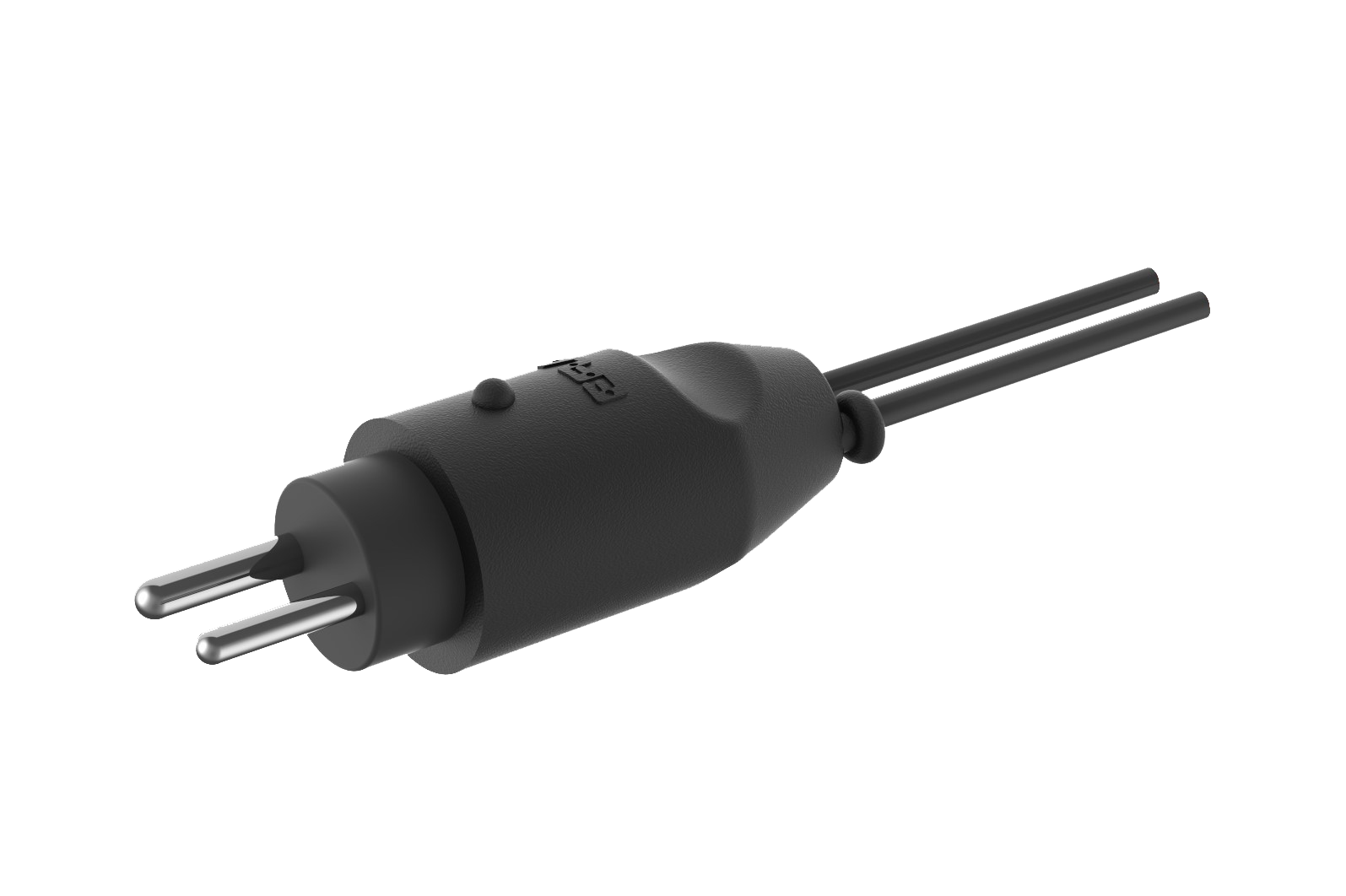

KDC503, Style 1, prefabricated secondary lead (png)

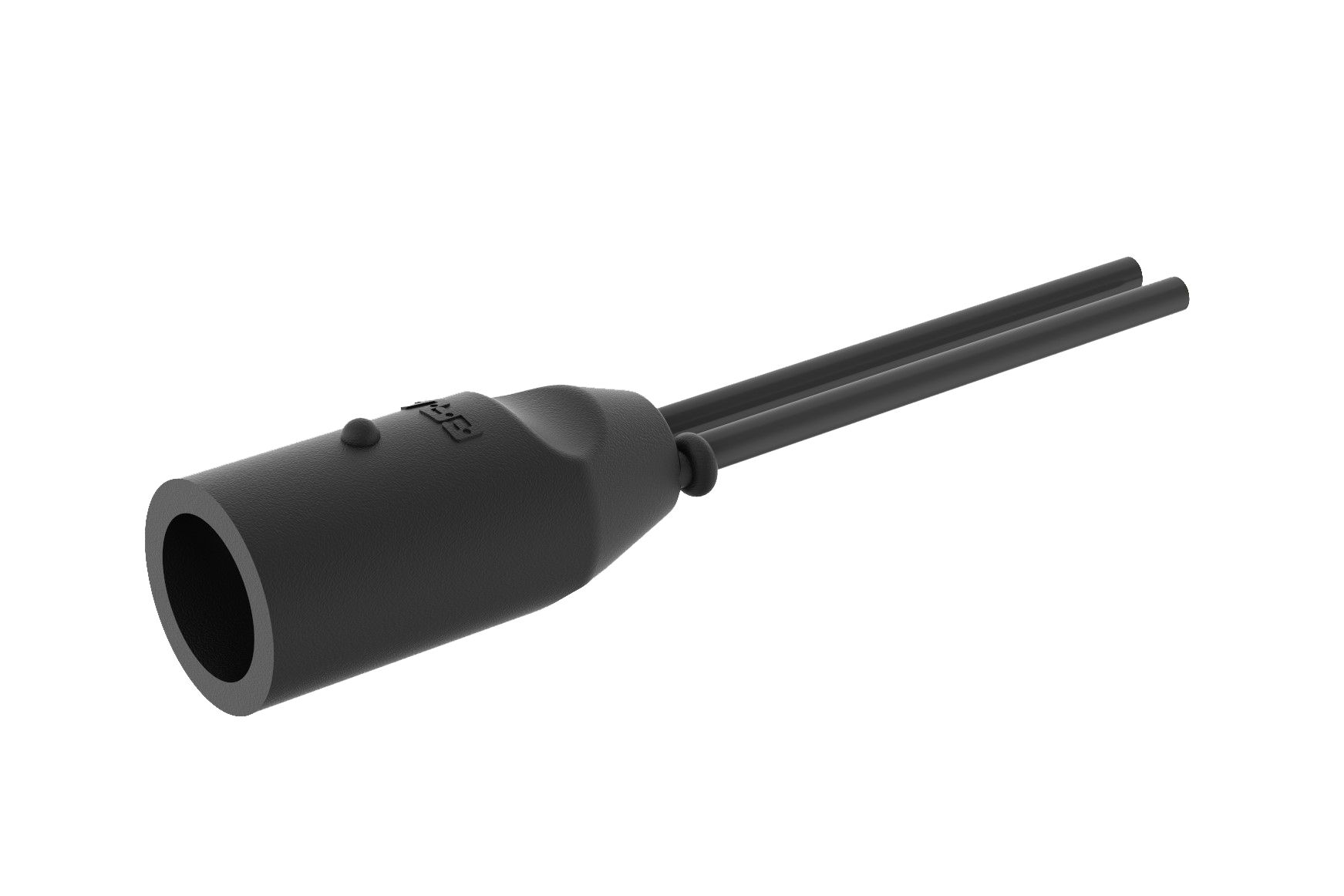

KR503R, Style 7, Prefabricated secondary lead, receptacle (png)

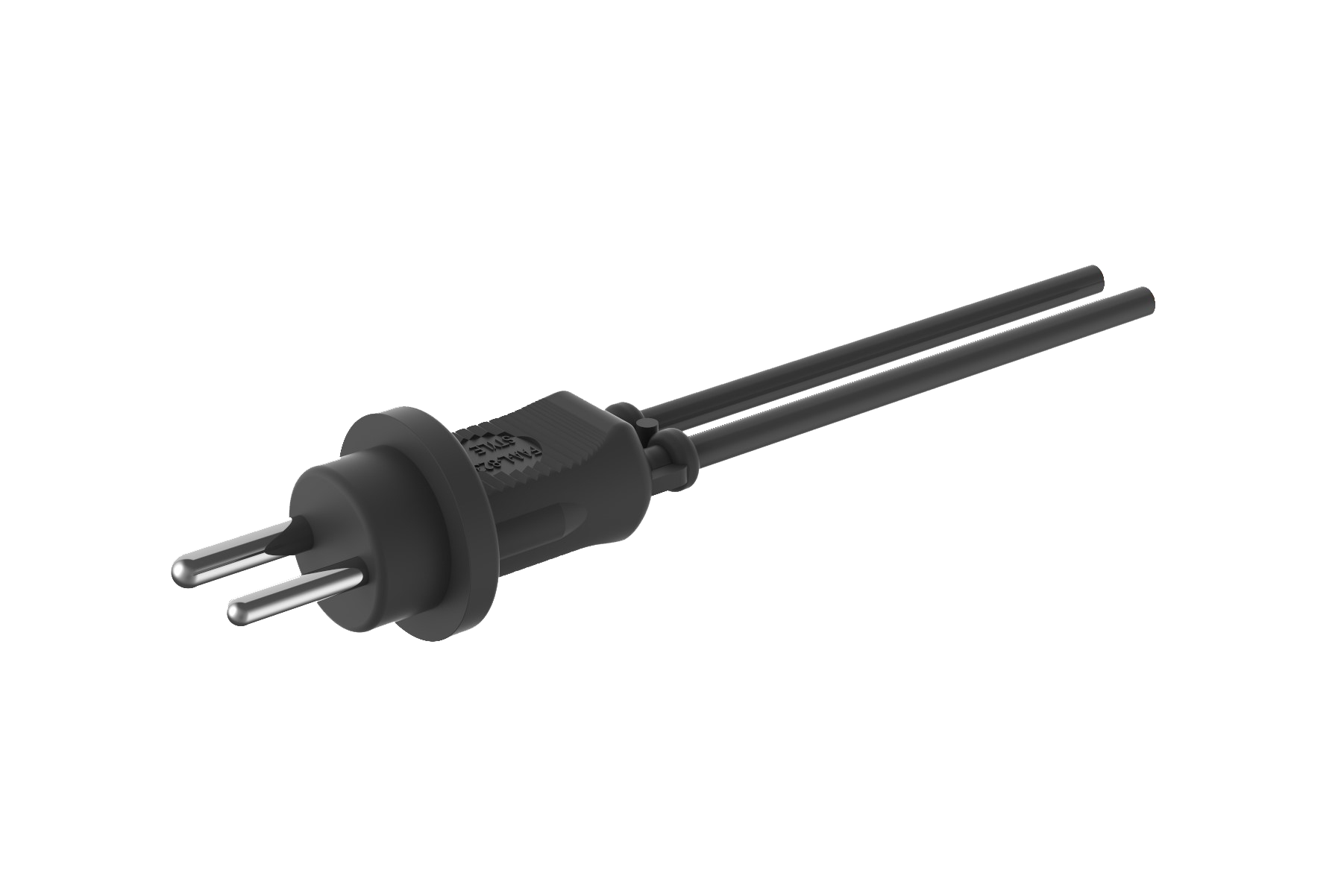

KDC506, Style 6, Prefabricated secondary lead with two single core wires (png)

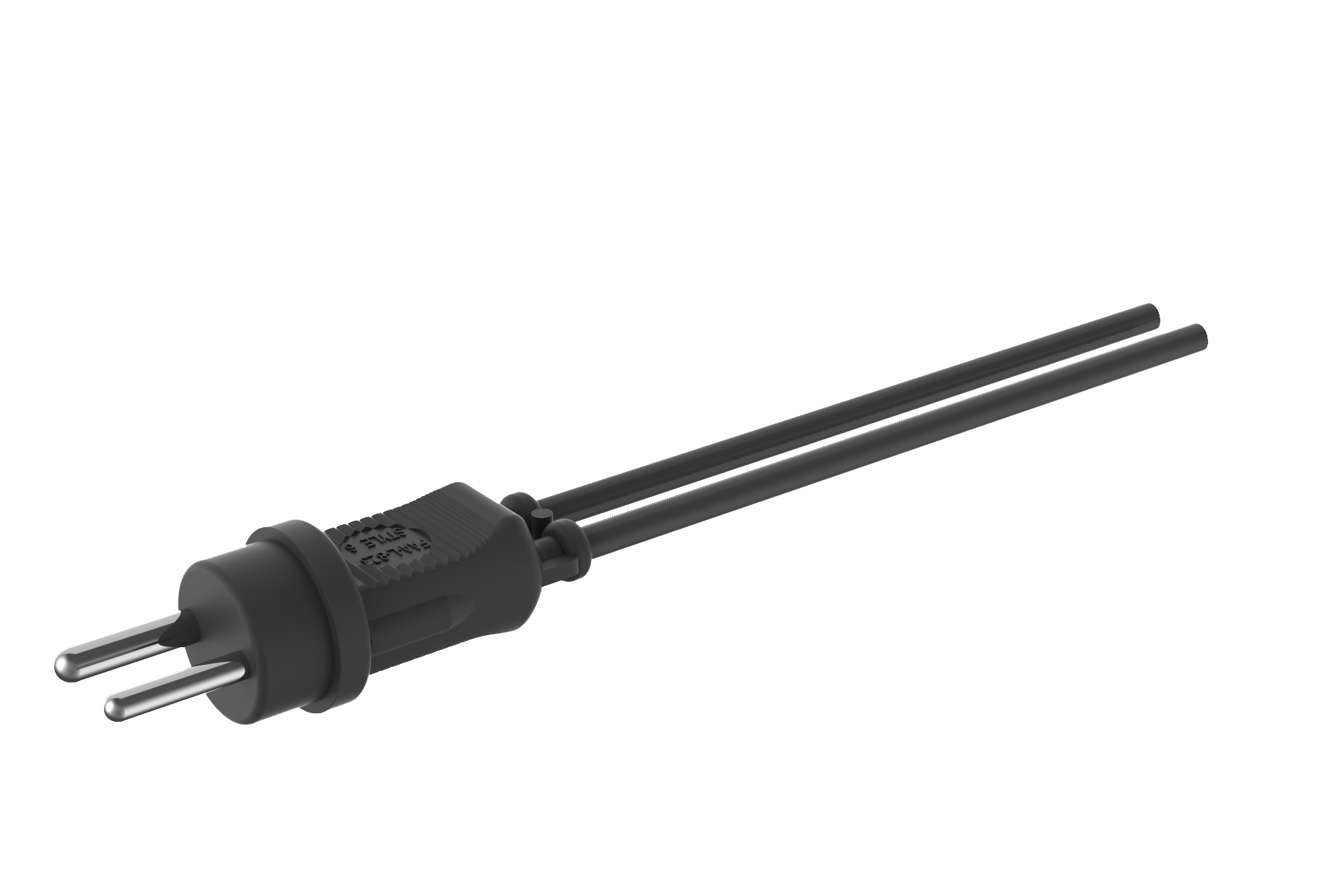

KDC506S, Style 6, prefabricated secondary lead with two single wires (png)
