KD classic

Industry requirement since decades

KD classic primary connector design has been the industry requirement for over 30 years. This silicon filled connector is fast to install and insulated screen continuity is available as an option. KD classic fits with a wide range of cable sizes and KD classic is FAA certified.

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Nominal rating: 25 A and 5000 V
  • Cable diameter 10,0 - 22,0 mm (0.393 - 0.866 inches)
  • Conductor size 6 - 10 mm² (8 - 6 AWG)
  • ROHS compliance with EU directive NO2002/95/EC
  • Fast to install 5-10 min

Available for screened cables (KD500) and unscreened cables (KD510).

KD primary connectors are packed and delivered in kits including all the necessary parts for making the assembly on primary cables. Each primary connector kit contains components for a pair (a plug and a receptacle).

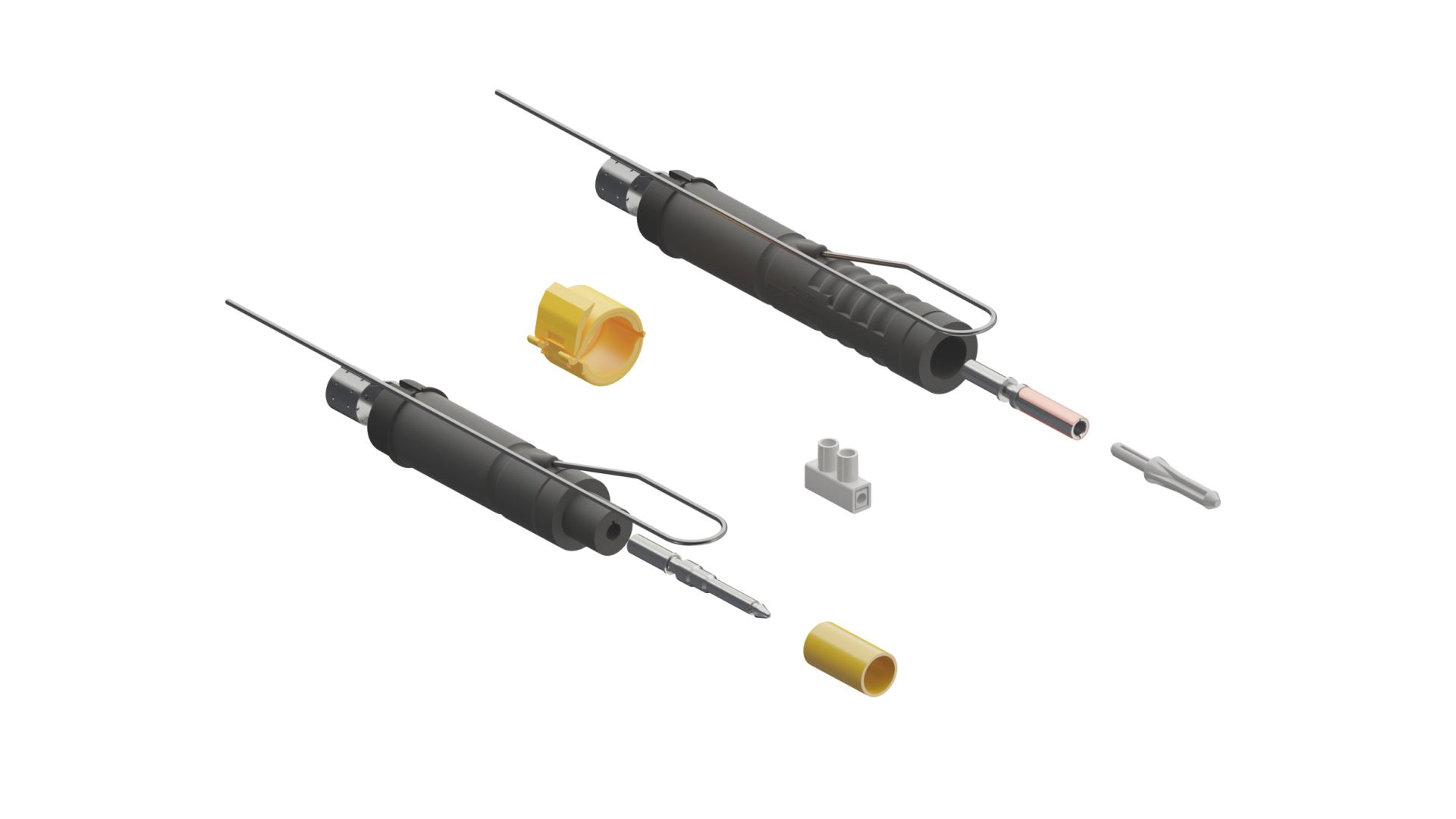

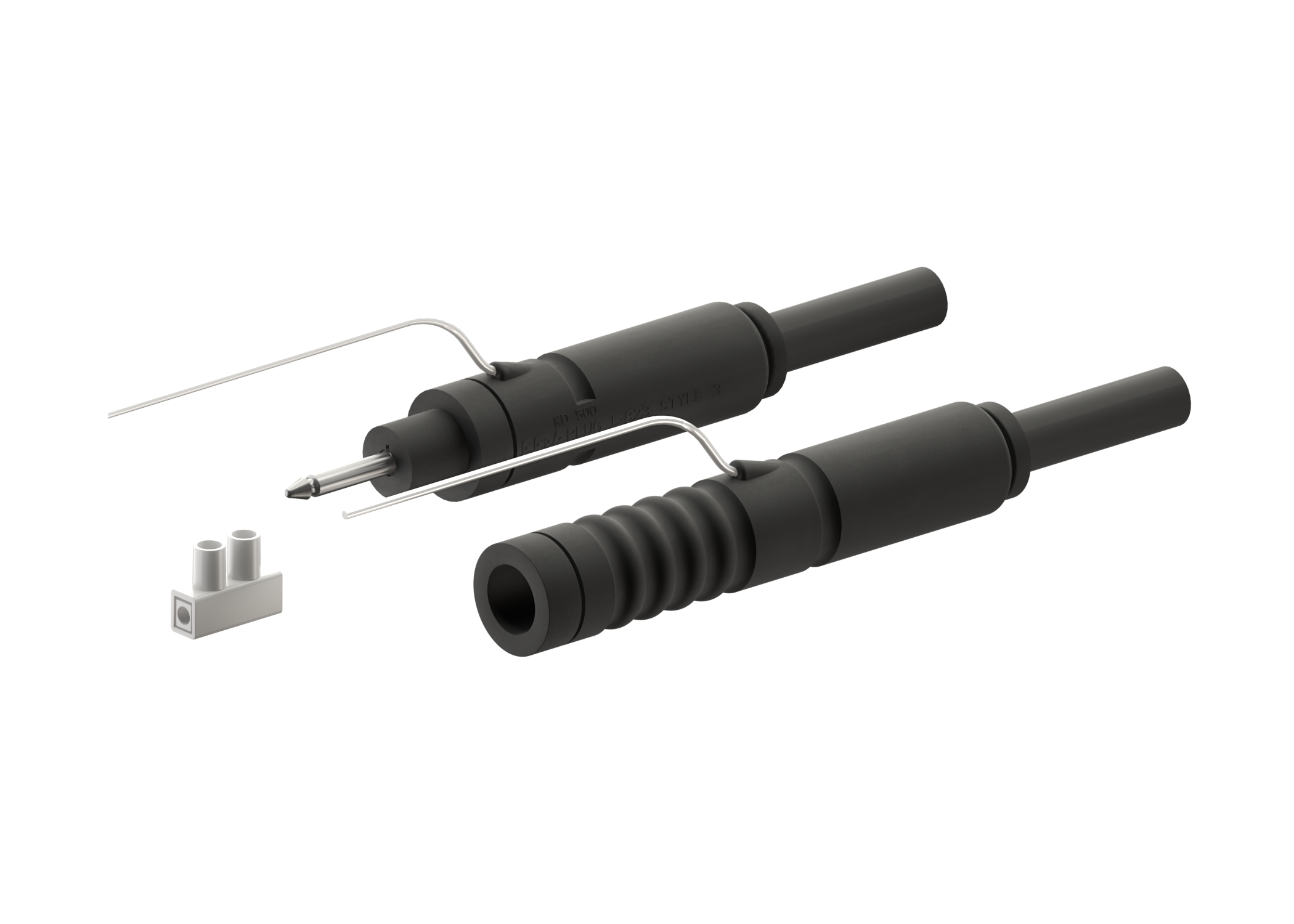

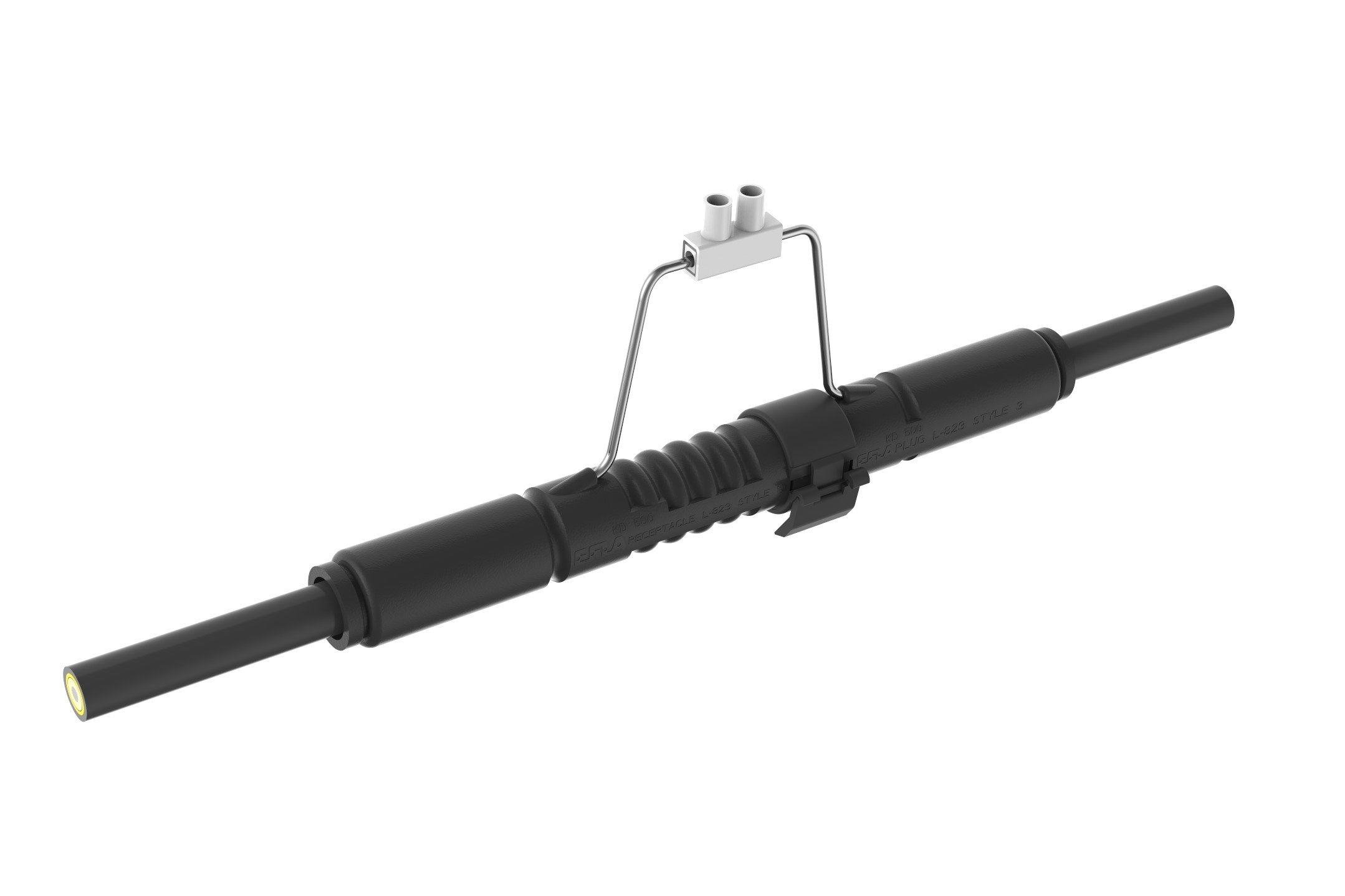

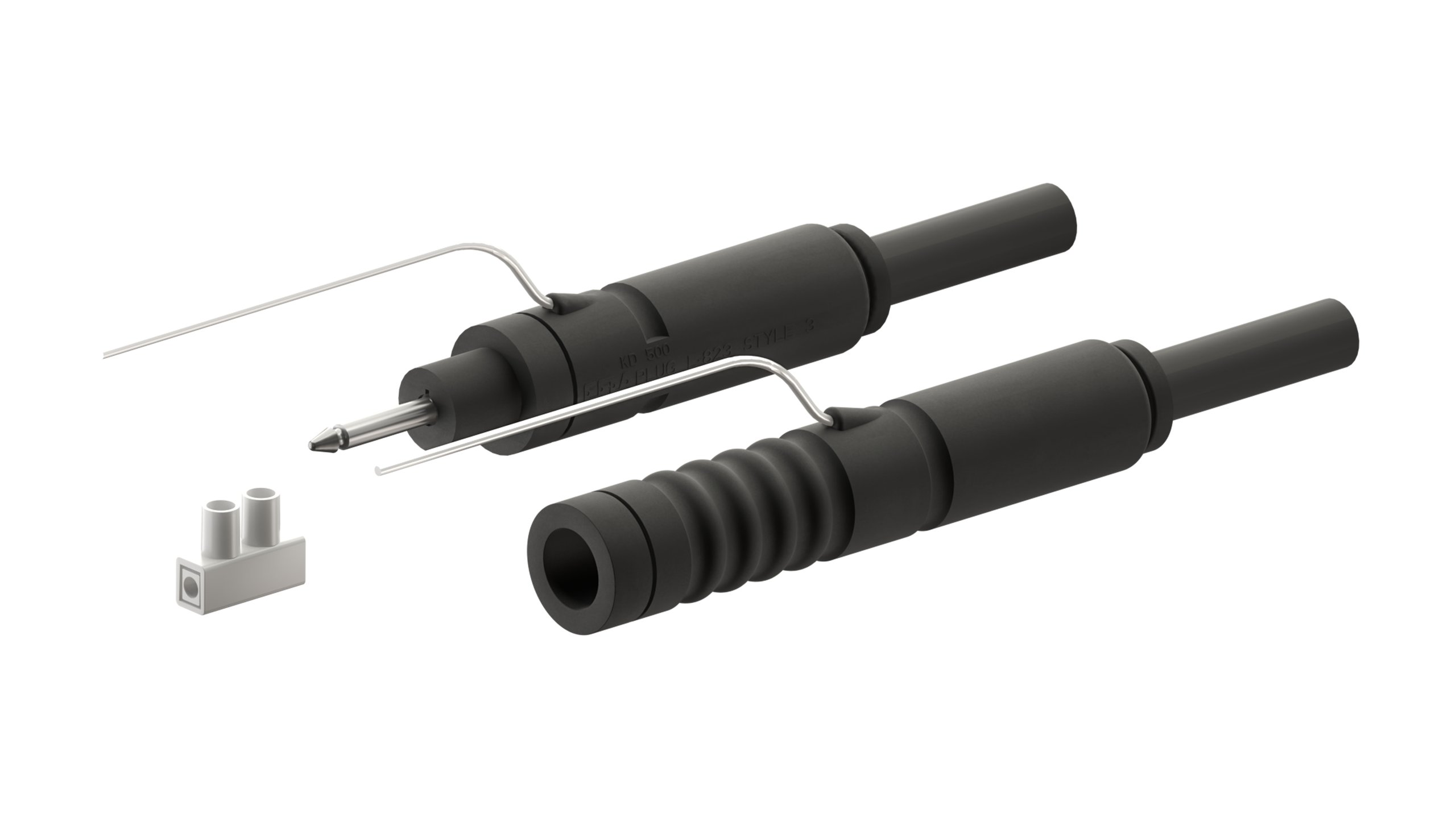

KD500
KD500

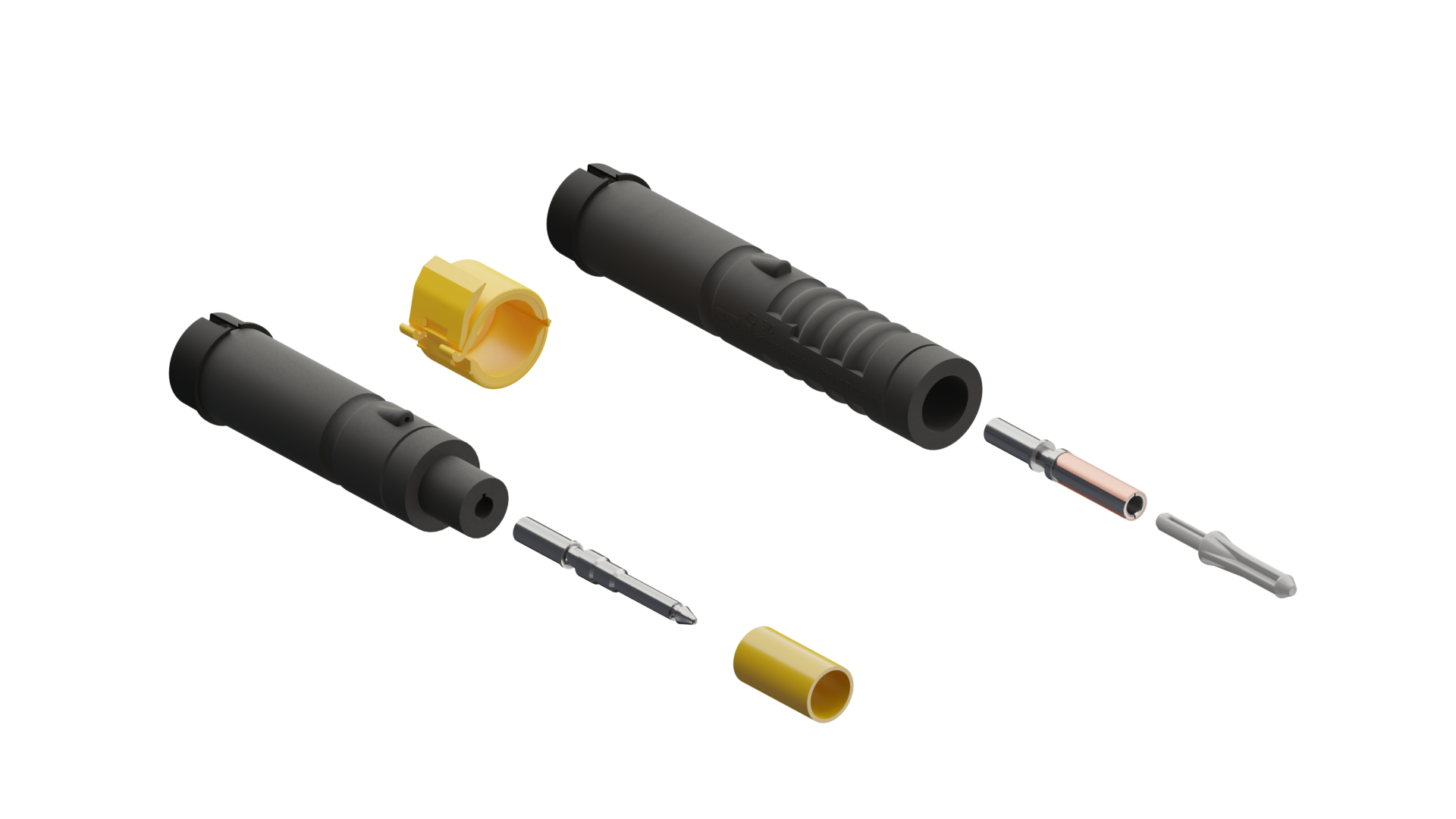

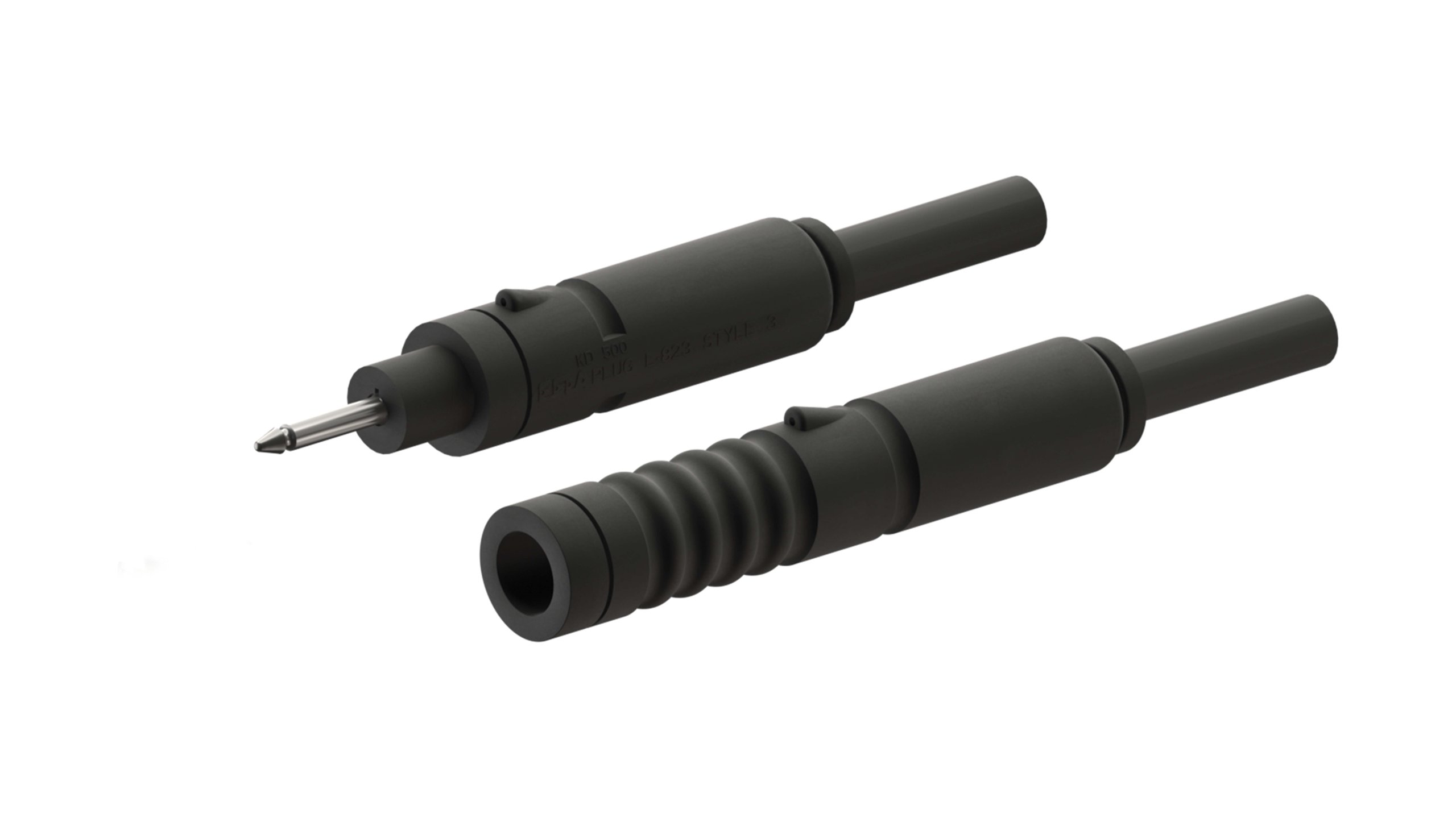

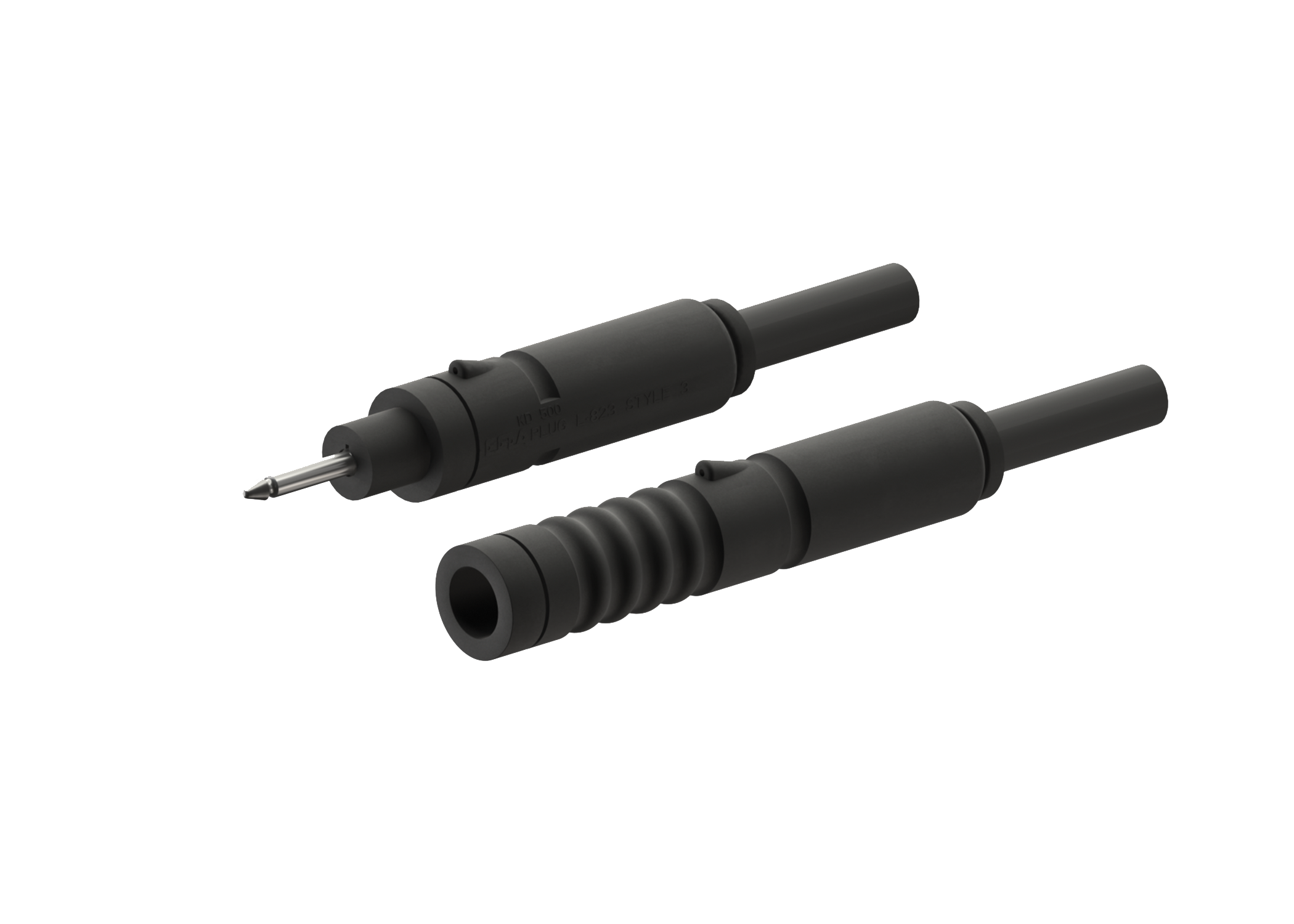

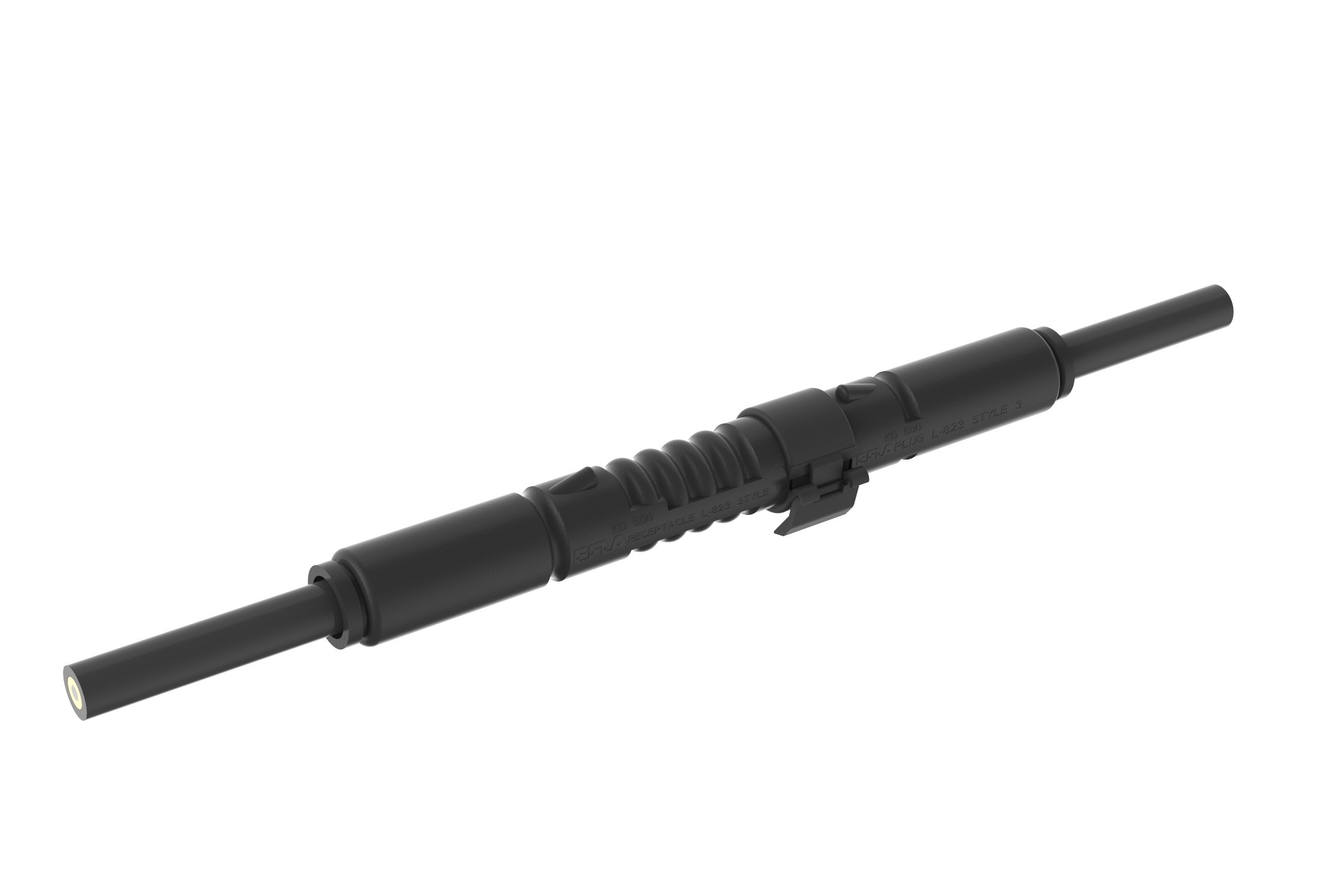

KD510
KD510
Datasheet
Certificates
Installation manuals and videos

KD classic: KD500 and KD510

Download datasheet > KD510,-AGL-primary-connector-kit,-unscreened,-assembled-(png)KD500, AGL primary connector, sceened, assembled (png)
