KDR Resin

Reliability to extreme conditions

KDR resin connector is designed for extreme conditions. KDR connector comes with polyurethane resin, which is poured inside the connector housing upon installation. This provides a permanent connection between connector housing and cable, which cannot be dismantled. Insulated screen continuity and epoxy resin version to high humidity environment are available on request.

  • Superior isolation resistance by thermoplastic elastomer (TPE)
  • Nominal rating: 25 A and 5000 V
  • Cable diameter 9,0 - 19,0 mm (0.354 - 0.748 inches)
  • Conductor size 6 - 10 mm² (8 - 6 AWG)
  • ROHS compliance with EU directive NO2002/95/EC

Available for screened cables (KDR600) and unscreened cables (KDR610).

KDR primary connectors are packed and delivered in kits including all the necessary parts for making the assembly on primary cables. Each primary connector kit contains components for a pair (a plug and a receptacle).

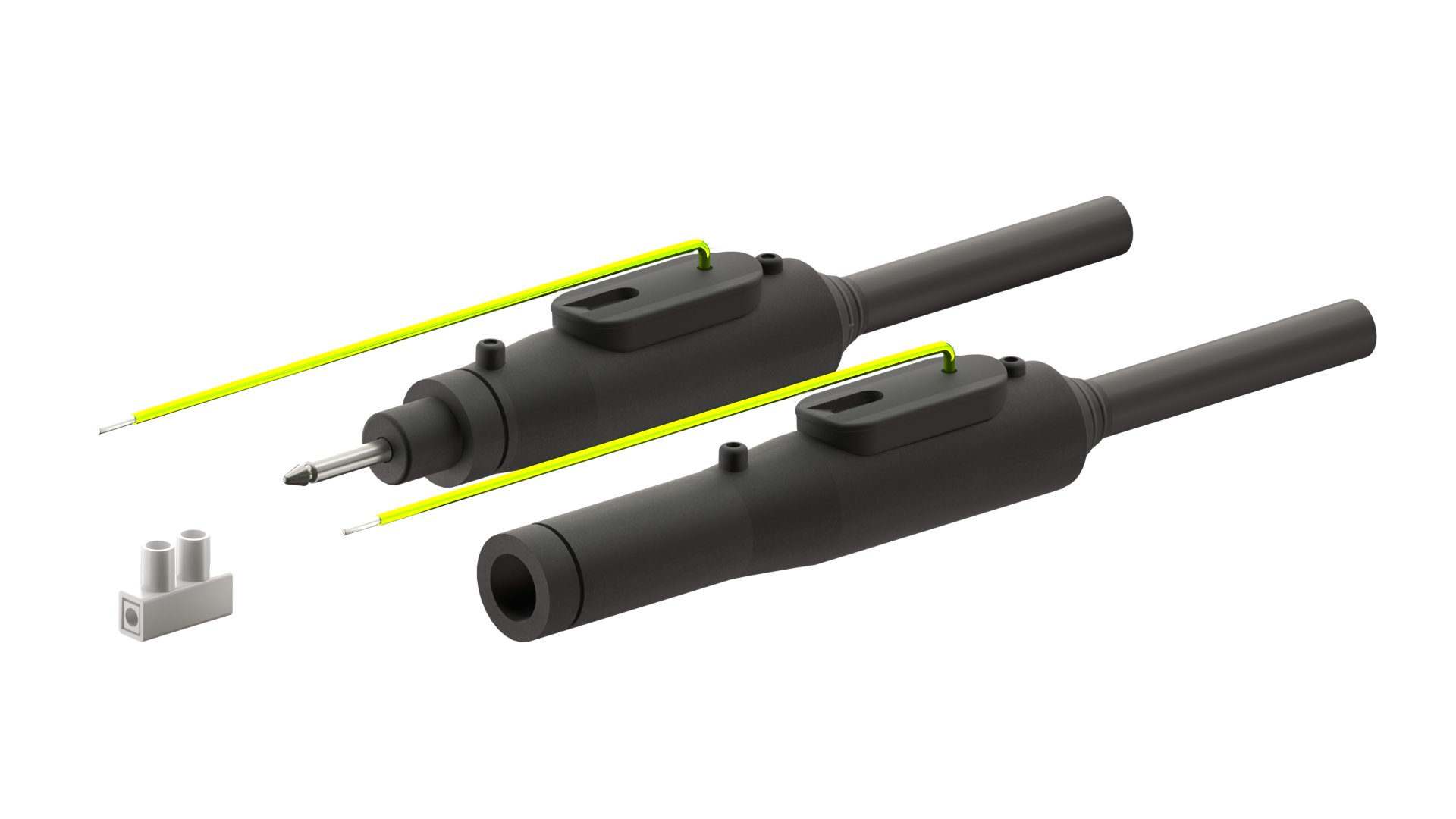

KDR600

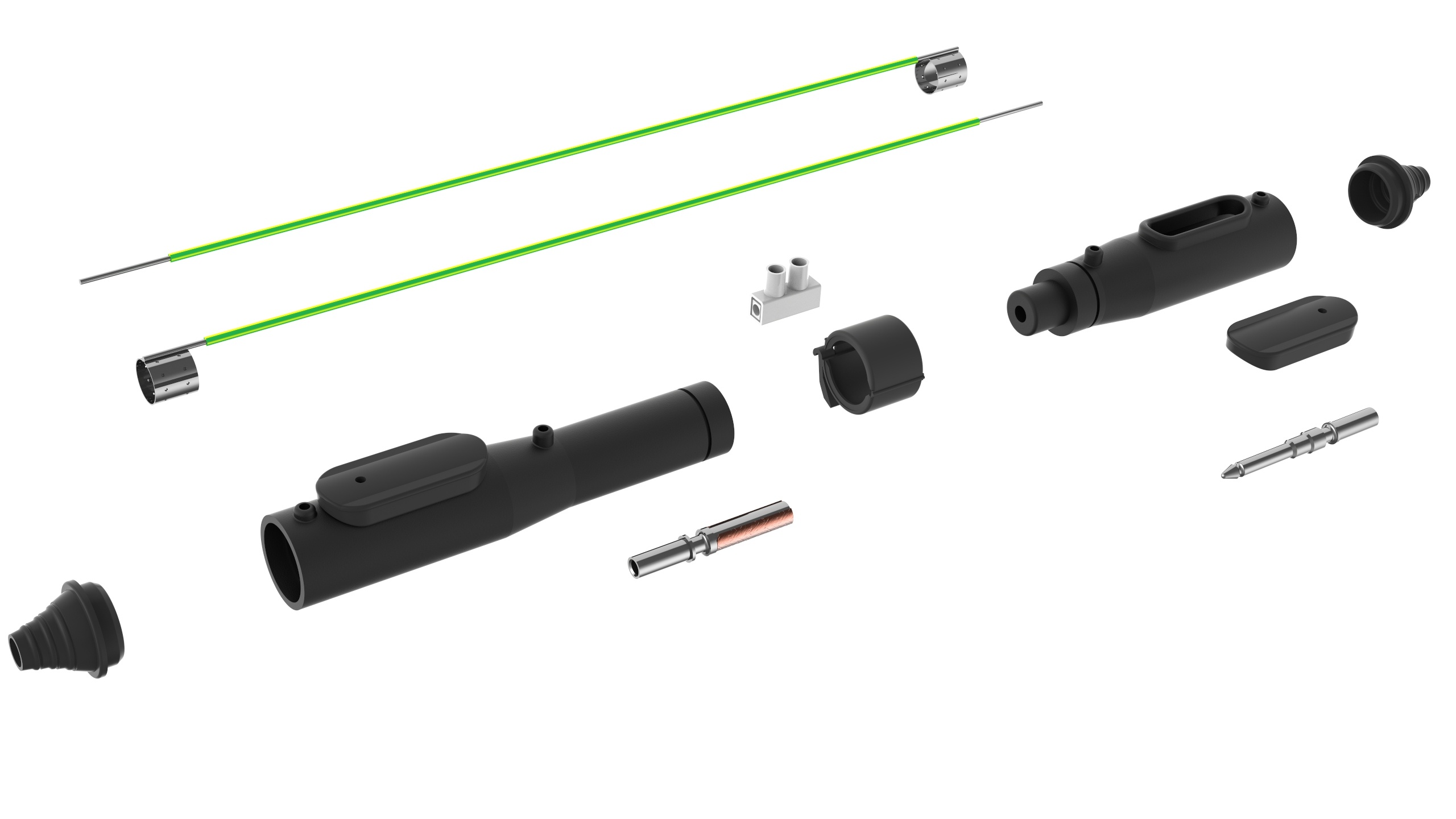

KDR600 Exploded

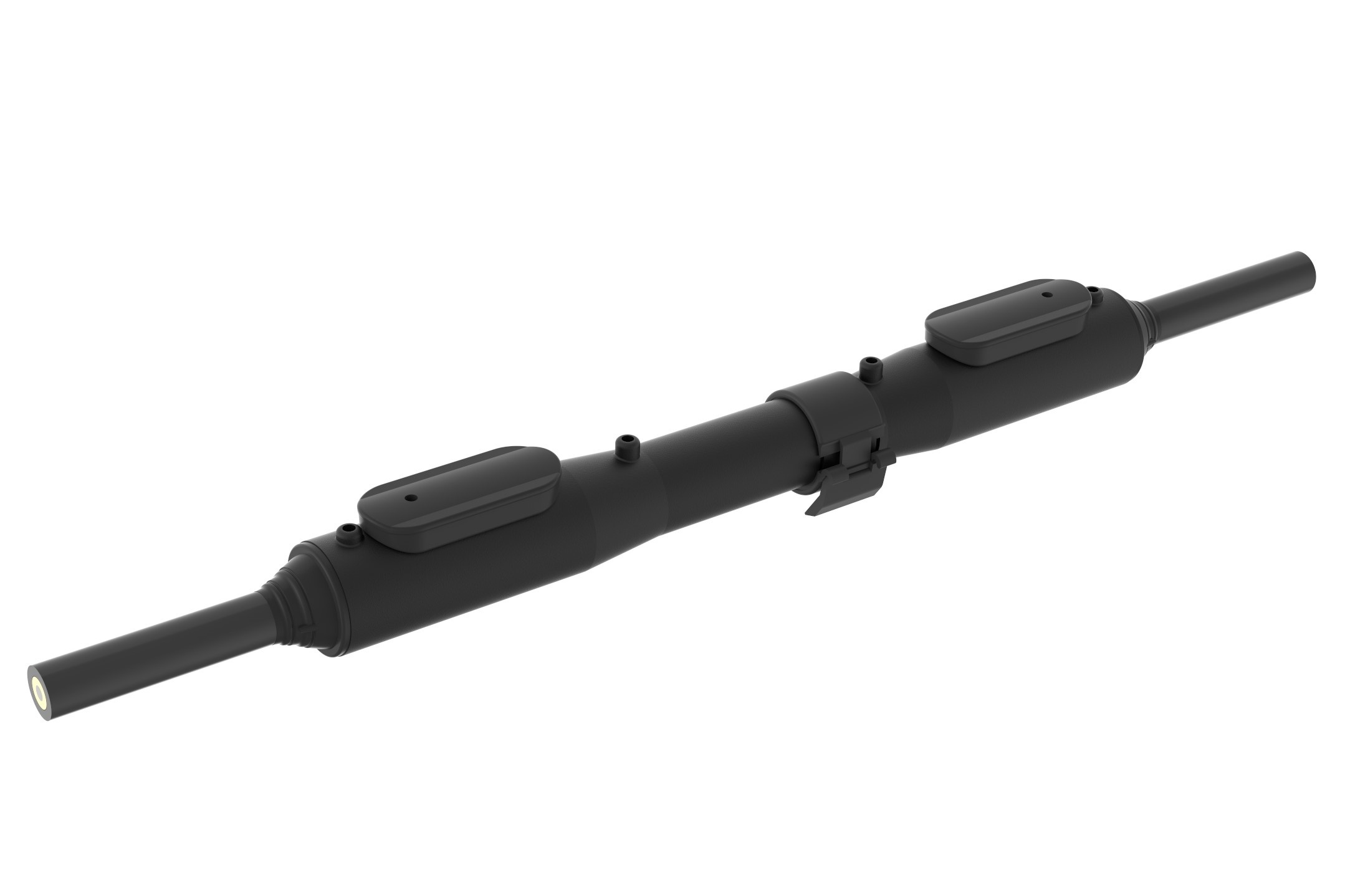

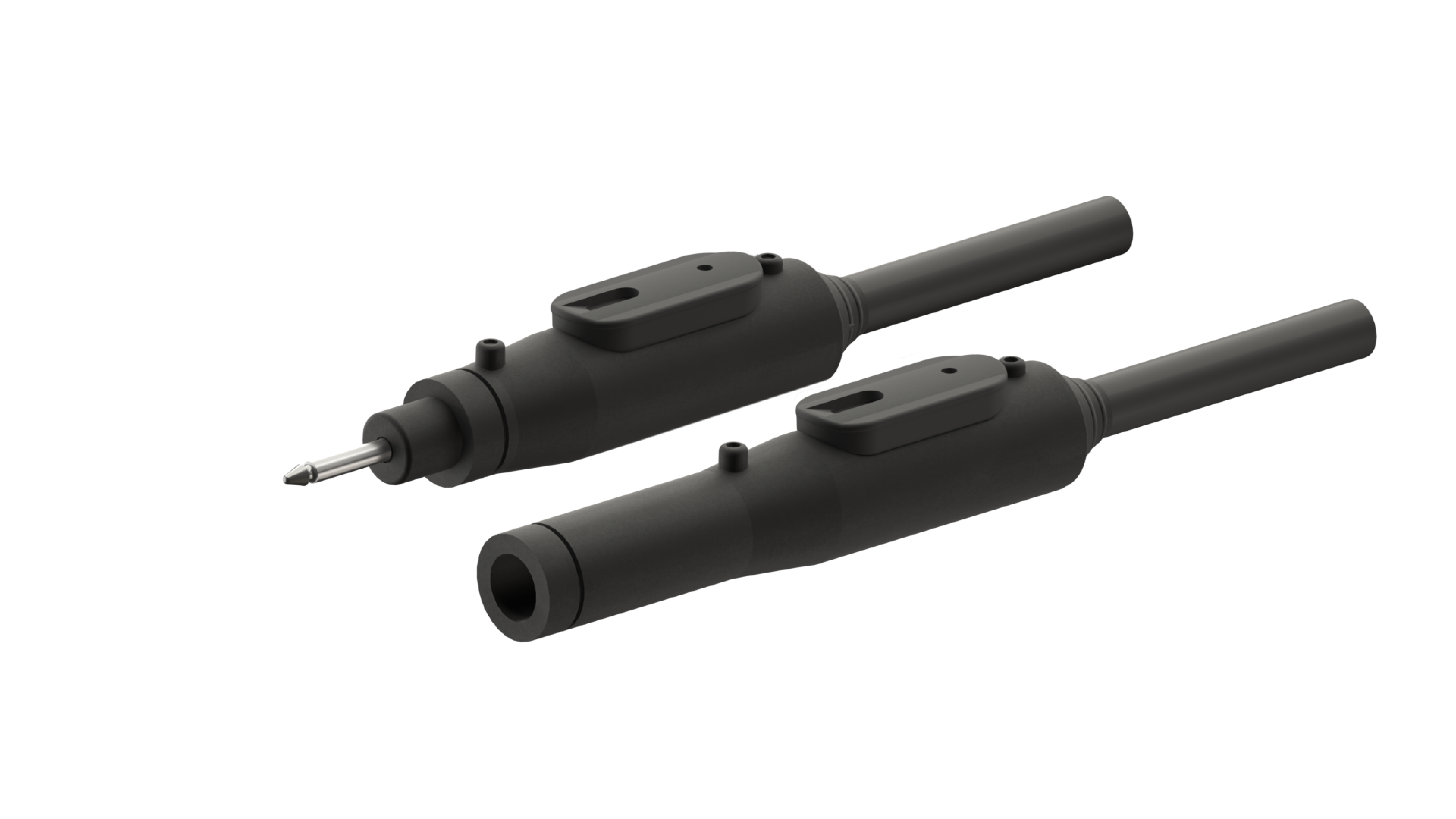

KDR610

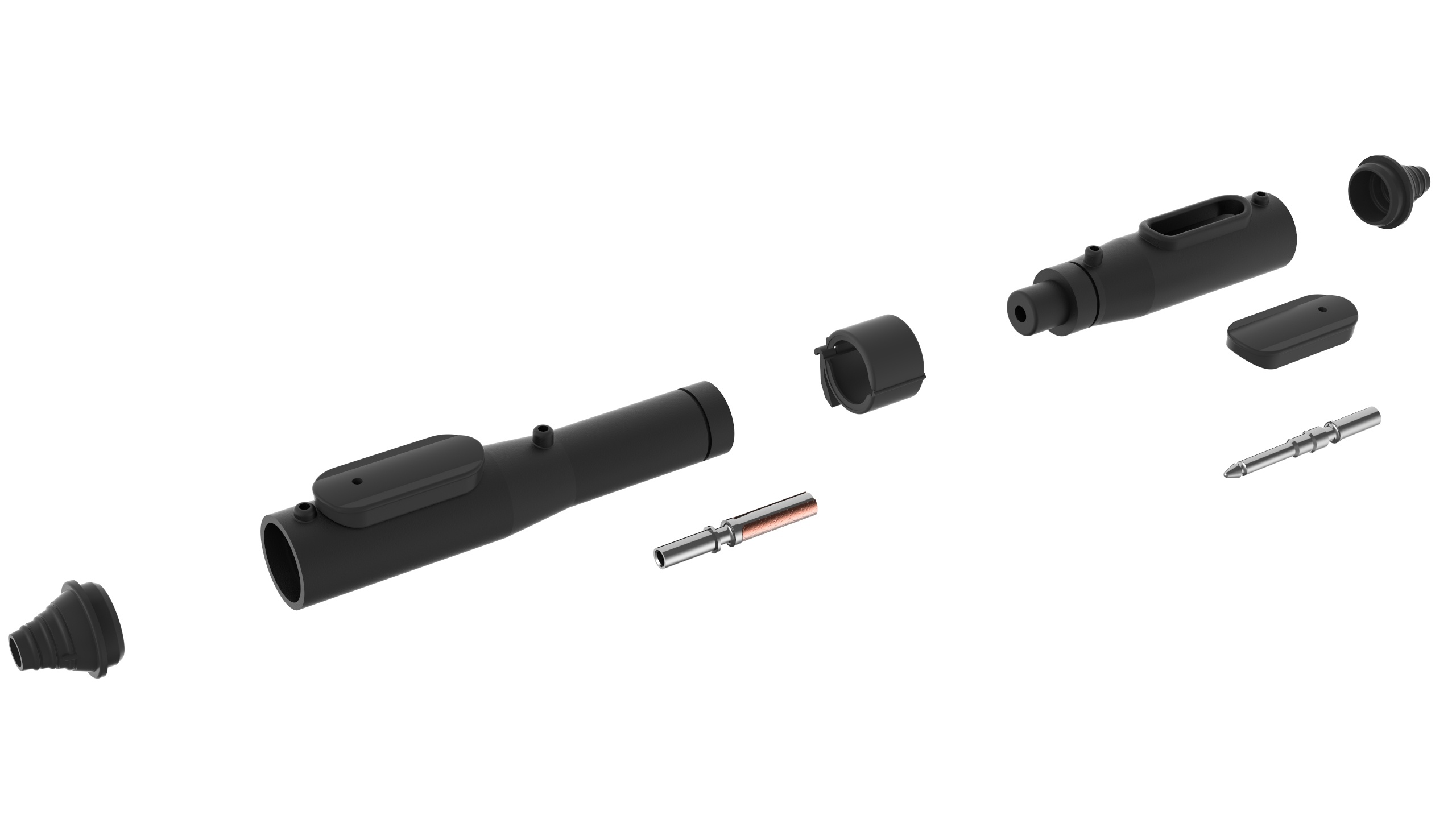

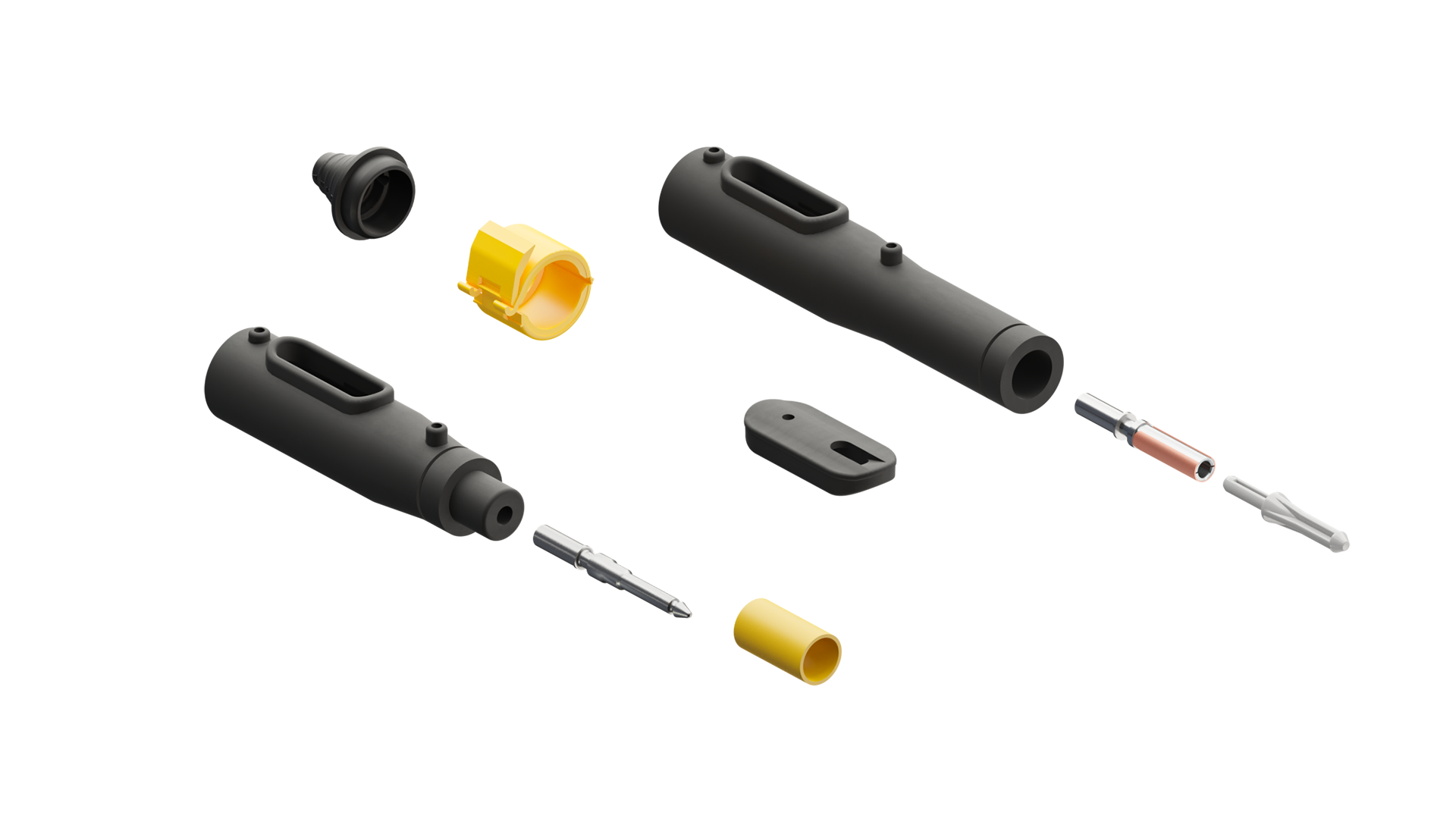

KDR610 Exploded
Datasheet
Installation Manuals

KDR Resin: KDR600 and KDR610

Download datasheet  > KDR610,-AGL-Primary-Connector,-Resin,-Unscreened,-Assebmled-(png)KDR600, AGL Primary Resin Connector Kit, assembled (png)
